Defines a two-dimensional grid-based layout system, optimized for user interface design.
Based on the container-child relationship
“Grid works from the container in, other layout methods start with the item”
—Rachel Andrew
inline-block
Item A
Item B
Item C
Item D
Item E
Item F
float
Item A
Item B
Item C
Item D
Item E
Item F
flex
Item A
Item B
Item C
Item D
Item E
Item F
“Grid is the only layout technique that establishes a relationship between rows and columns of grid items.”
Define your grid.
Place items in the grid.
<div class="grid1">
<div class="grid1__item">
<p>Item A</p>
</div>
<div class="grid1__item">
<p>Item B</p>
</div>
<div class="grid1__item">
<p>Item C</p>
</div>
<div class="grid1__item">
<p>Item D</p>
</div>
<div class="grid1__item">
<p>Item E</p>
</div>
<div class="grid1__item">
<p>Item F</p>
</div>
</div>
Item A
Item B
Item C
Item D
Item E
Item F
“Cede control of your designs to the browsers that render them.”
fr
unitRepresents a fraction of the free space in the grid container.
Item A
Item B
Item C
.container {
display: grid;
grid-template-columns: repeat(3, 3fr 2fr);
}
minmax()
functionDefines a size range for columns or rows in the grid.
Item A
Item B
Item C
repeat()
functionTo specify a large number of columns or rows that follow a similar pattern
Item
Item
Item
Item
Item
Item
Item
Item

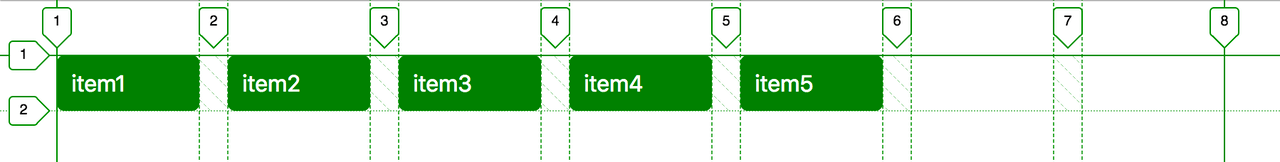

auto-fill
vs. auto-fit
Allow browser to determine how many tracks to create depending on track size.
repeat(auto-fill, 100px);
repeat(auto-fit, 100px);

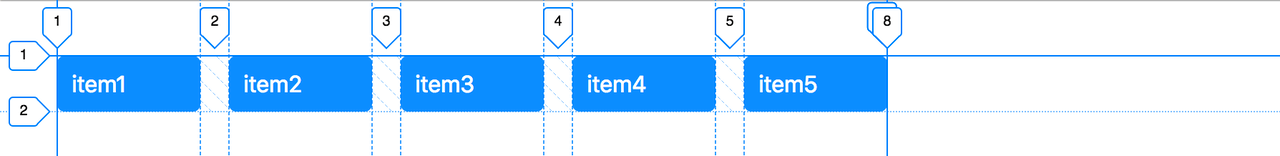

auto-fit
collapses empty tracks.
auto-fill
versus auto-fit
A
B
C
D
E
F
.container {
display: grid;
grid-template-columns: repeat(auto-fill, minmax(10em, 1fr));
}
.grid-container {
display: grid;
grid-template-columns: 150px 150px 150px; /* three columns */
grid-template-rows: 150px 150px; /* two rows */
}
.item {
grid-column: 5 / 6; /* grid-column-start: 5; grid-column-end: 6; */
grid-row: 2 / 3; /* grid-row-start: 2; grid-row-end: 3; */
}
The browser will create an implicit grid to hold items placed outside the grid.
Property | Axis | Aligns | Applies to |
---|---|---|---|
justify-content |
main/inline | content within element |
block containers, flex containers and grid containers |
align-content |
cross/block | ||
justify-self |
inline | element within parent |
block-level boxes, absolutely-positioned boxes and grid items |
align-self |
cross/block | absolutely-positioned boxes, flex items and grid items |
|
justify-items |
inline | items inside box |
block containers and grid containers |
align-items |
cross/block | flex-containers and grid-containers |
Source: CSS Box Alignment Module Level 3
justify/align-content
content-distribution properties
Values | justify-content |
align-content |
---|---|---|
center |
||
start |
||
end |
||
space-around |
||
space-between |
||
space-evenly |
justify/align-self
self-alignment properties
justify/align-items
defaults for justify/align-self
Self-alignment properties, maybe?
Flexbox to the rescue
grid-template-columns: [first sidebar-start] 250px [sidebar-end content-start] 1fr [content-end last];
grid-template-rows: [first header-start] 100px [header-end content-start] 1fr [content-end footer-start] 100px [footer-end last];
grid-column
and grid-row
(1) 🍏
(2) 🍊
(3) 🥥
(4) 🥑
(5) 🍇
(6) 🍌
.grid-container {
display: grid;
grid-template-areas: "logo stats"
"score stats"
"board board"
"... controls";
}
.logo { grid-area: logo; }
.score { grid-area: score; }
.stats { grid-area: stats; }
.board { grid-area: board; }
.controls { grid-area: controls; }
Item A
Item B
Item C
.steuergerät {
grid-gap: 0.5em;
grid-template-columns: 50% 50%;
grid-template-areas: "title title"
"text text"
"key key"
"detail1 detail2"
"detail3 detail4";
}

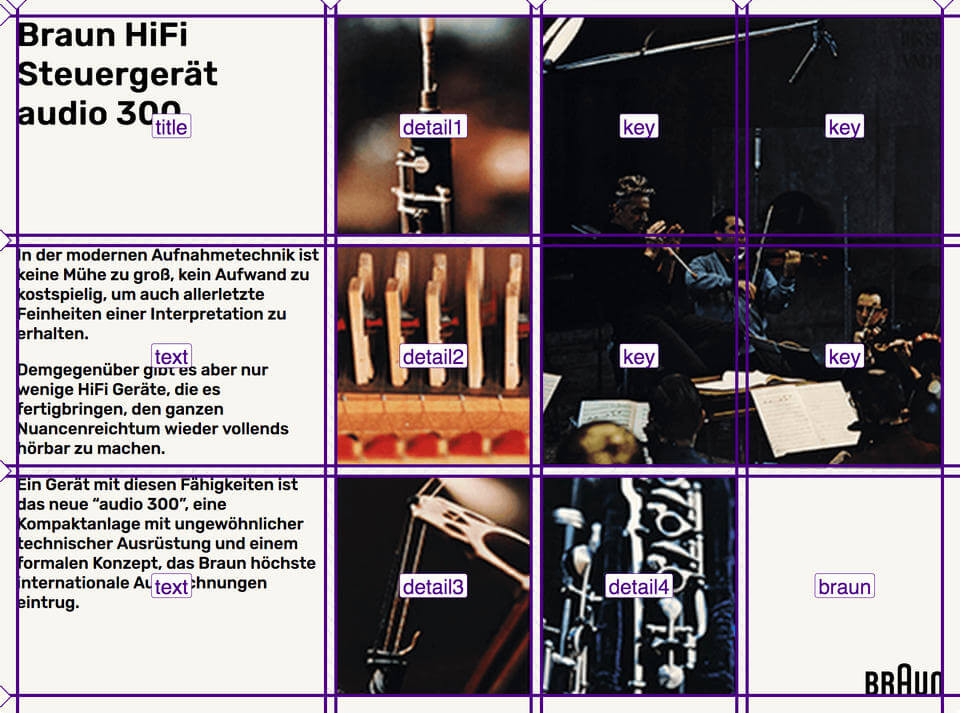

@media screen and (min-aspect-ratio: 1/1) and (min-height: 22em) {
.steuergerät {
grid-template-columns: 18.75em 1fr 1fr 1fr;
grid-template-rows: calc((100vh - 3em) / 3) calc((100vh - 3em) / 3) calc((100vh - 3em) / 3);
grid-template-areas: "title detail1 key key"
"text detail2 key key"
"text detail3 detail4 braun";
}
}

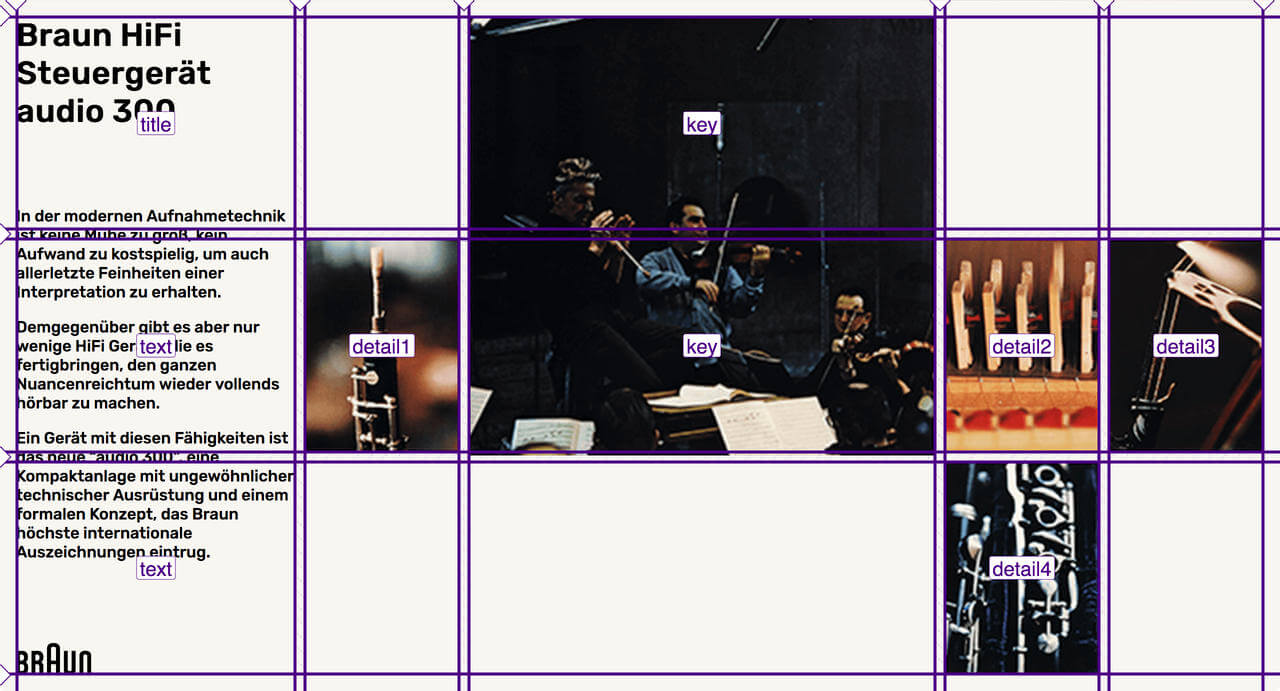

@media screen and (min-aspect-ratio: 8/5) and (min-height: 36em) {
.steuergerät {
grid-template-columns: 17.5em 1fr 3fr 1fr 1fr;
grid-template-rows: calc((100vh - 3em) / 3) calc((100vh - 3em) / 3) calc((100vh - 3em) / 3);
grid-template-areas: "title . key . ."
"text detail1 key detail2 detail3"
"text . . detail4 .";
}
}
.container {
display: grid;
grid-template-columns: repeat(9, 1.25em);
grid-template-rows: repeat(6, 1.25em);
}
h2 {
grid-row: 3 / 5;
grid-column: 1 / 10;
}
.container::before {
grid-row: 1 / 7;
grid-column: 1 / 7;
}
.container::after {
grid-row: 1 / 7;
grid-column: 4 / 10;
}
Design credit: Drew Sullivan
“Websites do NOT have to look the same in every browser.”

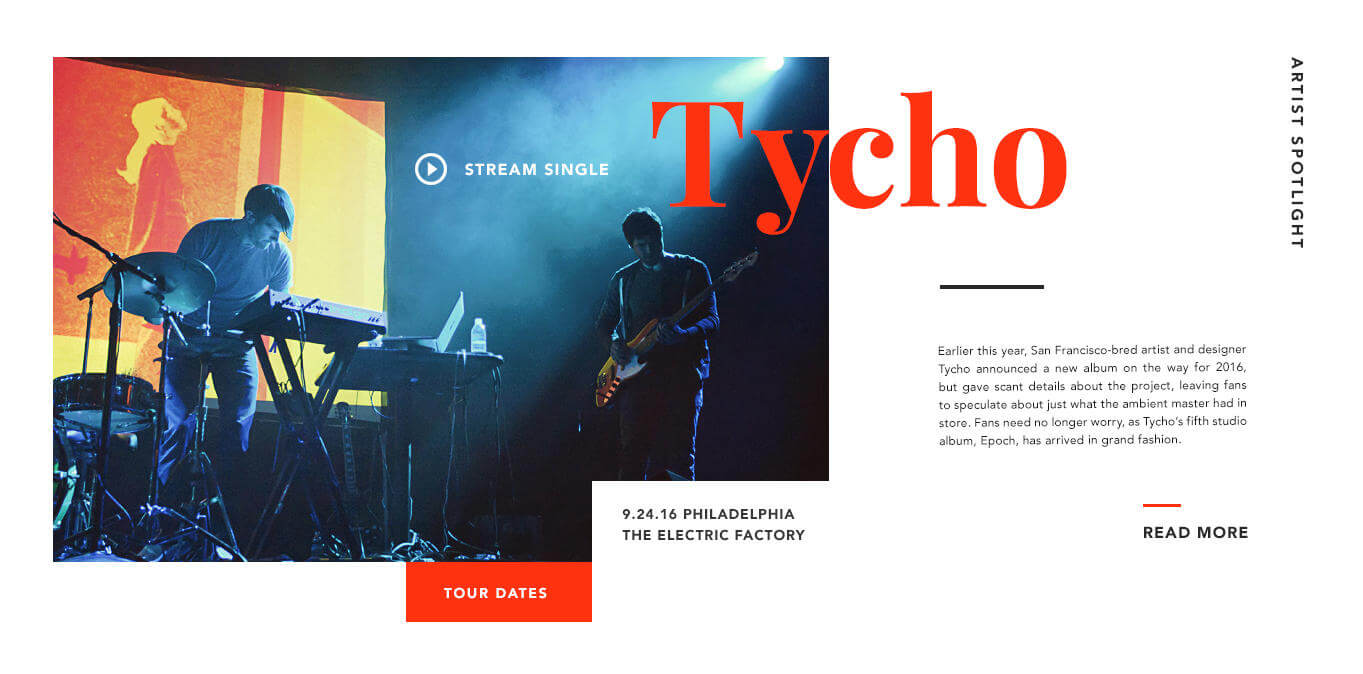

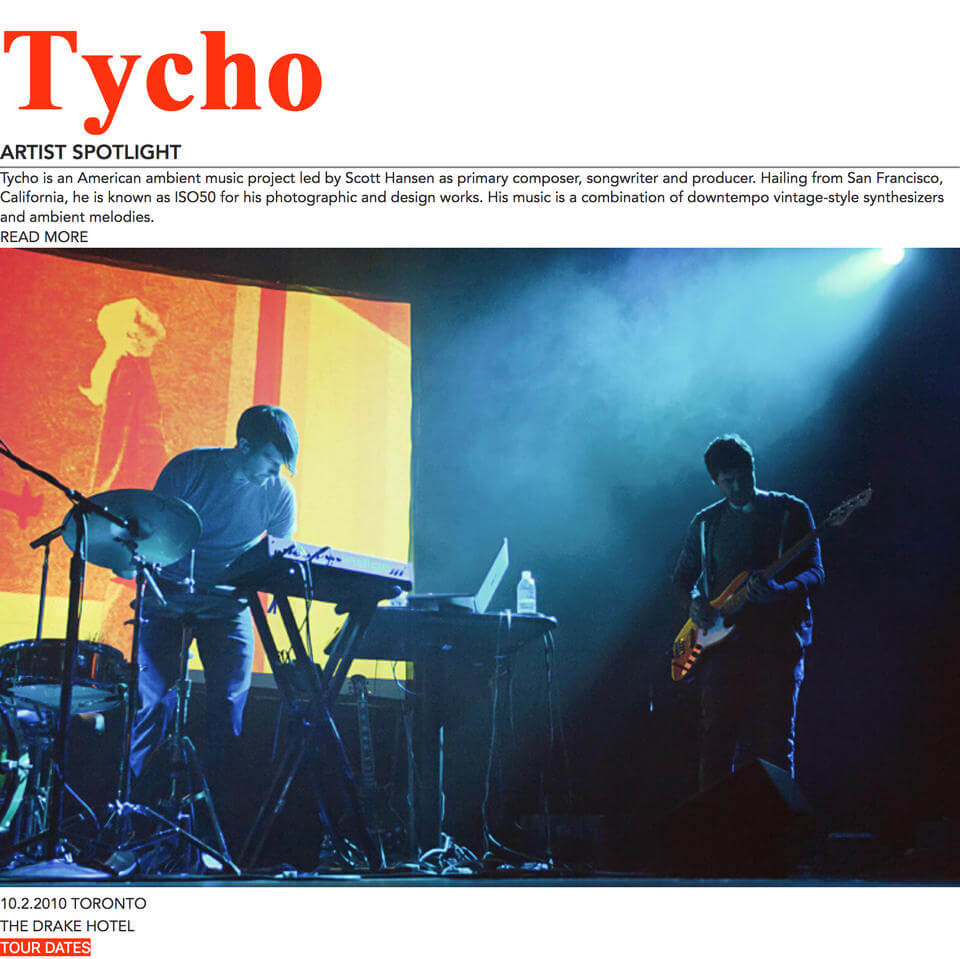

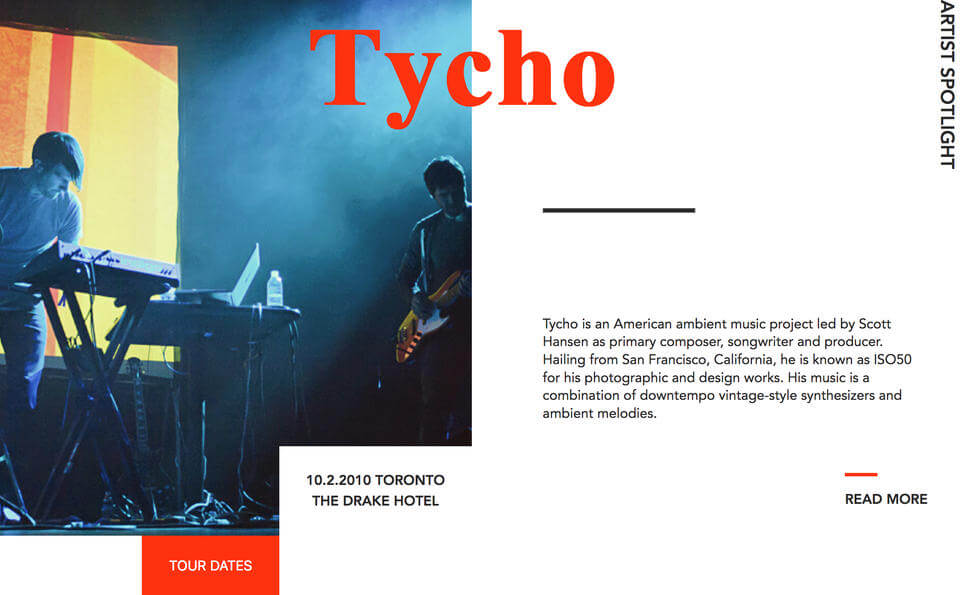

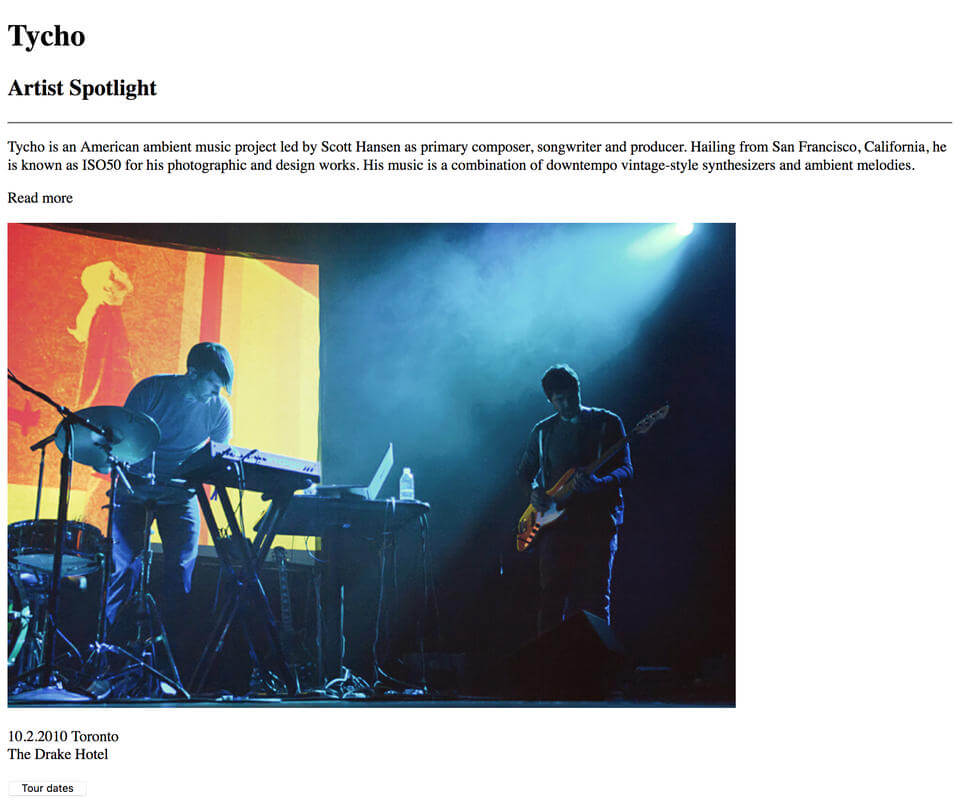

main {
max-width: 45em;
margin: 0 auto;
position: relative;
padding: 1em;
}
_:-ms-input-placeholder, :root main {
display: block;
}
h1 {
margin-bottom: 0.25em;
}
h2 {
margin-bottom: 1em;
}
.about {
margin-bottom: 1em;
}
a {
margin-bottom: 2em;
}
button {
padding: 1em 2em;
position: absolute;
right: 1em;
bottom: 1em;
}
@supports (display:grid) {
@media (min-width: 42em) and (min-height: 27em) {
main {
max-width: none;
padding: 0;
display: grid;

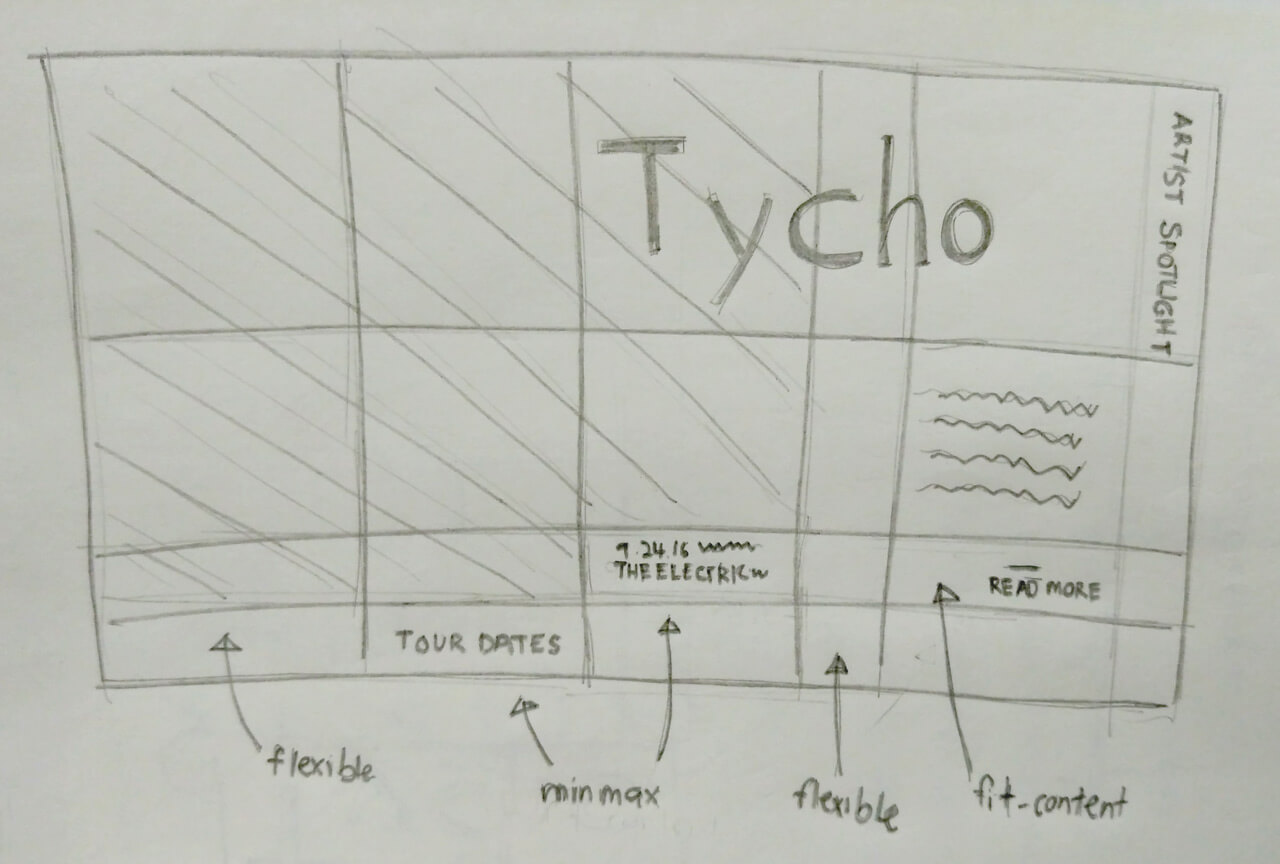

grid-template-columns: 2fr minmax(10em, max-content) minmax(14em, max-content) minmax(1em, 1fr) fit-content(28em) calc(2em + 0.5vw);
grid-template-rows: 35vh 40vh 15vh 10vh;
}
h1 {
grid-column: 3 / 6;
grid-row: 1 / 2;
z-index: 2;
padding-left: 0.25em;
margin-bottom: initial;
}
h2 {
grid-row: 1 / -1;
grid-column: 6 / 7;
writing-mode: vertical-rl;
margin-bottom: initial;
color: $text;
}
hr {
grid-column: 5 / 6;
grid-row: 2;
height: 6px;
background-color: $text;
width: 20ch;
}
.about {
grid-column: 5 / 6;
grid-row: 2;
align-self: end;
padding-bottom: 4vh;
margin-bottom: initial;
}
a {
grid-column: 5 / 6;
justify-self: end;
align-self: center;
margin-bottom: initial;
&::before {
content: '';
display: block;
height: 4px;
background-color: $accent;
width: 4ch;
margin-bottom: 1em;
}
}
img {
grid-column: 1 / 4;
grid-row: 1 / 4;
}
.location {
grid-column: 3 / 4;
grid-row: 3 / 4;
z-index: 2;
background: $main;
text-align: center;
display: flex;
p {
margin: auto;
}
}
button {
grid-column: 2 / 3;
grid-row: 4 / 5;
position: initial;
padding: 0;
}
}
@media (min-width: 48em) {
hr {
opacity: 1;
}
}
}

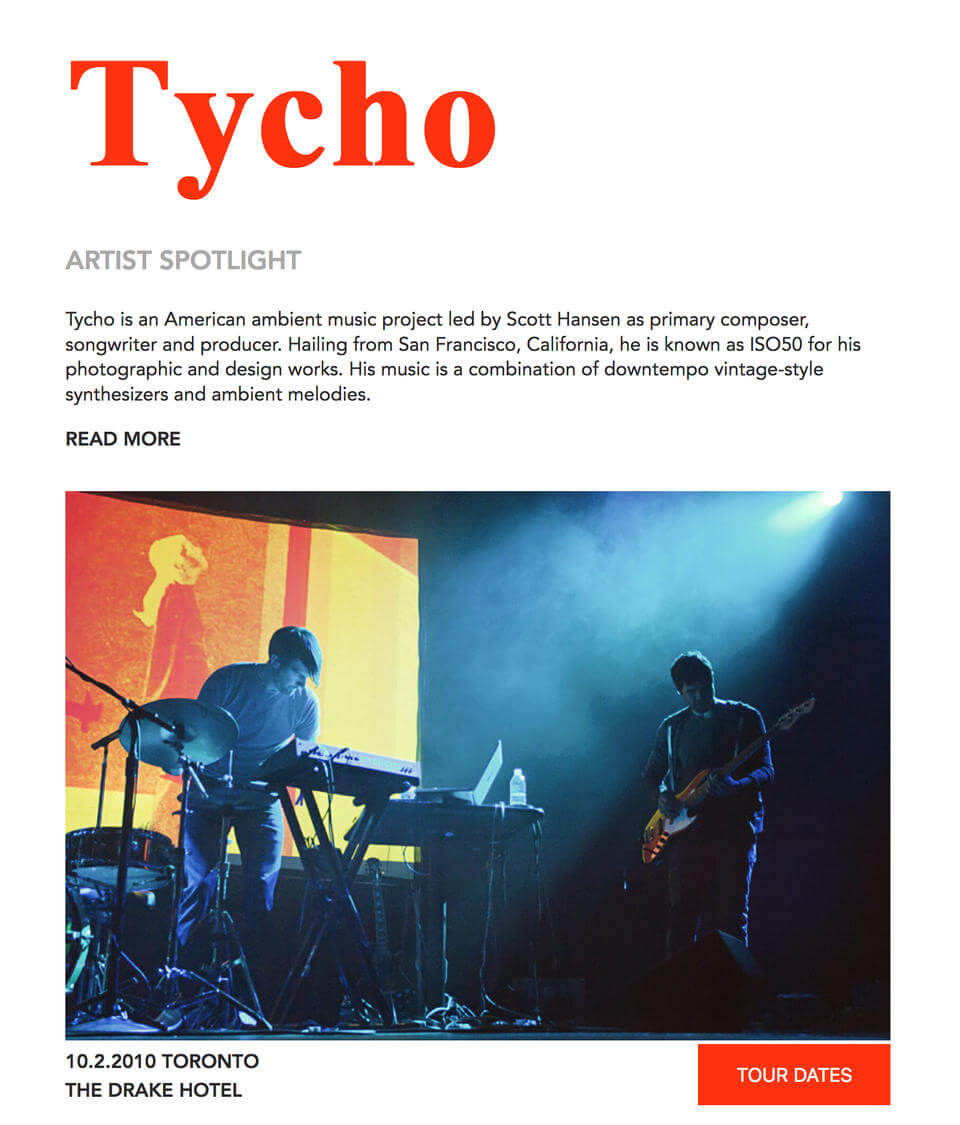

A conditional group rule whose condition tests whether the user agent supports CSS property: value pairs.
.selector {
/* Styles that are supported in old browsers */
}
@supports (property:value) {
.selector {
/* Styles for browsers that support the specified property */
}
}
@supports
header::before {
content: 'This example requires a browser that supports CSS Flexbox or Grid. If your browser did support CSS Grid, you would have seen something that resembles the image below, except recreated in HTML and CSS instead.';
display: inline-block;
background-color: rgba(253, 182, 182, 0.75);
font-size: initial;
max-width: 36em;
color: #000;
padding: 0.5em;
}
header > * {
display: none;
}
header {
background-color: $background;
background-image: url('./fallback.png');
background-size: contain;
background-repeat: no-repeat;
background-position: bottom;
overflow: hidden;
max-height: 60vh;
position: relative;
}
@supports (display: flex) {
header::before {
content: none;
}
header {
background-image: none;
}
.grid {
display: block;
}
.title {
color: $txt-light;
display: flex;
align-items: center;
justify-content: flex-end;
font-size: 2.5em;
z-index: 1;
padding-right: 0.25em;
}
.time {
color: $txt-dark;
display: flex;
align-items: center;
justify-content: center;
padding: 0 0.5em;
}
.grid__item:nth-of-type(1) {
background-color: $blue;
width: 30vw;
}
.grid__item:nth-of-type(2) {
background-color: $purple;
width: 45vw;
}
.grid__item:nth-of-type(3) {
background-color: $yellow;
width: 60vw;
position: relative;
z-index: 2;
}
.time {
width: calc(100% / 9);
float: left;
padding: 1em;
}
.time:nth-child(8) {
position: relative;
&::before {
display: block;
content: '';
height: 3.5em;
width: 3.5em;
border-radius: 50%;
position: absolute;
border: 0.2em solid $blue;
z-index: 1;
}
}
.border {
width: 0.2em;
background-color: $red;
position: absolute;
top: 0;
height: 100%;
left: calc((100% / 9) * 7);
}
}
@supports (display:grid) {
.time {
grid-row: 7;
}
.grid {
display: grid;
grid-template-columns: repeat(9, 1fr);
grid-template-rows: repeat(3, 2em) repeat(3, minmax(10vmin, 3em)) 2em 2em 10vh;
grid-gap: 0.125em;
position: relative;
}
@media screen and (min-width: 480px) {
.grid {
transform: rotate(-30deg) translateX(5vh);
grid-template-rows: repeat(3, 2em) repeat(3, minmax(10vmin, 3em)) 2em 2em 50vh;
}
}
@media screen and (min-width: 640px) {
.grid {
transform: rotate(-30deg) translateY(-15vh);
}
}
.grid__item:nth-of-type(1) {
grid-row: 4;
grid-column: span 3;
width: auto;
}
.grid__item:nth-of-type(2) {
grid-row: 5;
grid-column: span 5;
width: auto;
}
.grid__item:nth-of-type(3) {
grid-row: 6;
grid-column: span 7;
width: auto;
}
.border {
grid-row: 1 / -1;
grid-column: 8;
margin-left: -0.125em;
width: 1px;
border-left: 0.2em solid $red;
left: initial;
}
.square1 {
grid-column: 2;
position: relative;
&::before {
display: block;
content: '';
height: 1.25em;
width: 1.25em;
border: 0.2em solid $purple;
position: absolute;
right: 0;
}
}
.square2 {
grid-column: 3;
grid-row: 2;
position: relative;
&::before {
display: block;
content: '';
height: 0.5em;
width: 0.5em;
background-color: $green;
position: absolute;
right: 1em;
top: 1em;
}
}
.circle {
grid-column: 2;
grid-row: 3;
position: relative;
&::before {
display: block;
content: '';
border: 0.2em solid $yellow;
border-radius: 50%;
position: absolute;
height: 4em;
width: 4em;
top: calc(50% - 0.5em);
left: calc(50% - 2em);
}
}
.square3 {
grid-column: 8;
grid-row: 6;
position: relative;
&::before {
display: block;
content: '';
height: 0.75em;
width: 0.75em;
background-color: $yellow;
position: absolute;
right: 0;
top: 1em;
}
}
.square4 {
grid-column: 6;
grid-row: 8;
position: relative;
&::before {
display: block;
content: '';
height: 1.5em;
width: 1.5em;
position: absolute;
right: 0;
top: 100%;
border: 0.2em solid $green;
}
}
}
“CSS isn't a programming language. It's a stylesheet language. We shouldn't expect it to behave like a programming language. It has its own unique landscape and structures, ones that people with programming language mental maps might not expect.”
—Danielle Huntrods
