Vertical writing on the web

Inadvertent layout inspiration from a search for cultural identity

Chen Hui Jing
Jing
@hj_chen
🇲🇾 🏀 👩‍💻 📝 🦊

What does the web mean to you?

Launch of the web Weaving the web
“For the Web, the external link is what would allow it to actually become ‘worldwide’.”
—Sir Tim Berners-Lee
🔗
Michelle Yeoh in Star Trek: Discovery No ewoks in Star Trek No porgs in Star Trek
Michelle Yeoh
https://youtu.be/0b6HxVA_q2U?t=190
European colonisation of SEA

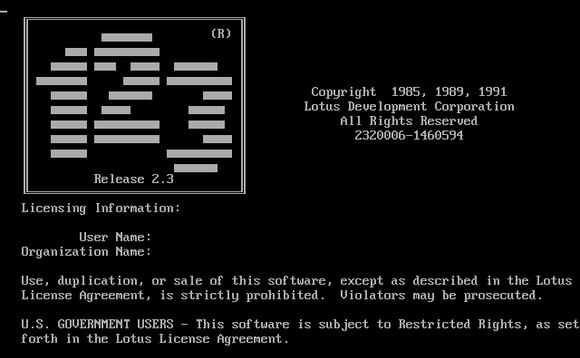

Windows 3.1 interface DOOM DOS installer interface Lotus 1-2-3 start screen SimCity interface
English (~5%)Every other language in the world (~95%)
Distribution of languages used around the world
Every other language in the world (~48.0%)English (~52.0%)
Distribution of content languages on the web

Sources: Worldometers, Ethnologue, W3Techs

Internationalisation (i18n)

“To ensure that the technology supports text in any writing system of the world.”
W3C Internationalisation

هانق تواه هو محارب وبحار ملايوي من ملاكا عاش في عهد حكم السلطان منصور شاه في القرن الخامس عشر الميلادي، وكان واحداً من أقدر أميرالات السلطان الذين يسمون لكسامانا إلى جانب هانق كاستوري ، وهانق ليكيو، وهانق ليكير، وهانق جيبات.

从前,在马来西亚的西海岸边上,住着一个叫左汉的渔夫,他每天早出晚归出海捕鱼,卖鱼的钱除了吃饭、穿衣等必需的日常开销外,剩下的就不多了。左汉对辛辛苦苦的捕鱼生活很不满意,一心只想着发财。可是,左汉心里明白:靠捕鱼,自己是永远不会成为富翁的。

မိုးလင်းကတည်းကပင် ကောင်းကင်သည် အုံ့မှိုင်း ညို့မှုန်လျက်ရှိသည်။ တိမ်တိုက်ဟူ၍ ဘာမှကြည်လင်စွာမမြင်ရ။ မိုးကိုကြည့်ရသည်မှာ မြူသန်းနေသော ပင်လယ်ပြင်ကြီးလို ဝိုးဝိုးဝါးဝါးနေသည်။ မိုးသည် ကင်းကင်းလွတ်လွတ်စဲသည် ဟူ၍မရှိ၊ တဖွဲဖွဲ ဖွဲနေလိုက်၊ တဖြိုင်ဖြိုင်ရွာချလိုက်နှင့်၊ နောက် စွေ၍ နေလေသည်။

ลิลิตพระลอเป็นเรื่องความรักที่มีอนุภาพรุนแรงยิ่ง จนแม้ชีวิตก็ยอมพลีให้แก่กัน เนื้อเรื่องกล่าวถึงเมืองสองเมือง คือ เมืองสรอง กับเมืองสรวงเป็นศัตรูกัน เจ้าเมืองสรวงได้ฆ่าเจ้าเมืองสรองตายในสนามรบ พระชายาเจ้าเมืองสรองมีความแค้นเจ้าเมืองสรวงอย่างยิ่ง

ຄັນເມື່ອຄວາຍຕົວນັນຕາຍໄປແລ້ວຂຸນທັງສອງຈຶ່ງຝັງມັນໄວ້ທີ່ຫົວນາ ຕໍ່ມາຈຶ່ງມີເຄືອຫມາກນໍ້າເຕົ້າສອງເຄືອ ເກີດມາຈາກຮູດັງຄວາຍແລ້ວກໍ່ມີຫມາກນໍ້າເຕົ້າໃຫຍ່ສອງ ຫນ່ວຍ ເມື່ອຫມາກນໍ້າເຕົ້າໃຫຍ່ສອງຫນ່ວຍນັ້ນແກ່ແຫ້ງແລ້ວ ກໍ່ເລີຍໄດ້ຍິນສຽງຄົນ ຮ້ອງຊວ່າ ແຊວຢູ່ໃນຫມາກນໍ້າເຕົ້າຫນ່ວຍກົກ.

អាចោរនោះថា «បងស្រលាញ់ស្មោះហើយនាងពុំដឹងចិត្តបងចង់អោយបងស្បថ រឺអោយបងធ្វើម្ដេច ? » ។ មេនោះថា «បើស្រលាញ់ចិត្តមួយនឹងគ្នា មានតែលិទ្ធអណ្ដាតគ្នា » ទើបមេនោះលៀនអណ្ដាតហើយអោនទៅរកអាចោរនោះ។

Chẳng là xƣa nay bọn mình chƣa viết chung thƣ bao giờ. Cho nên cuối cùng phải thỏa thuận với nhau là cứ viết riêng thôi. Nhƣng lại xảy ra chuyện tranh cãi là để ai viết trƣớc bây giờ. Đành rút thăm vậy. Kết quả là mình trúng đầu tiên.

Isa pang round at nagka-ayawan na pagka 11:00 na halos ng gabi. Namahagi si Manuel ng kaunting balato at ang natirang malinis niyang pinanalunan ay P700 na kanyang ibinukod habang matuling tumatakbo ang taksi na patungo sa kanyang inuuwian.

生命對幾米來說,剛開始像「接龍」,有了這一張牌,才能找到下一張牌,他在罹患血癌之後,靠一本本創作,才能維繫生命絲線。他作品呈現的「童真的憂鬱」,帶給讀者深深的共鳴。功成名就的幾米也越來越自信從容,但他說:「外面的虛浮都是假的,空洞的,只有當我的手握著筆,埋頭工作的時候,我才是最堅強。」

Do developers even care about typography?

“Typography is writing with prefabricated letters”
—Gerrit Noordzij

Phoenician alphabet

甲骨文

Hippopotamus
(English) 12 letters

河马

Lebensgefährte
(German) 14 letters

伴侣

Grianghrafadóireachta
(Irish) 21 letters

摄影

Evolution of the Latin alphabet

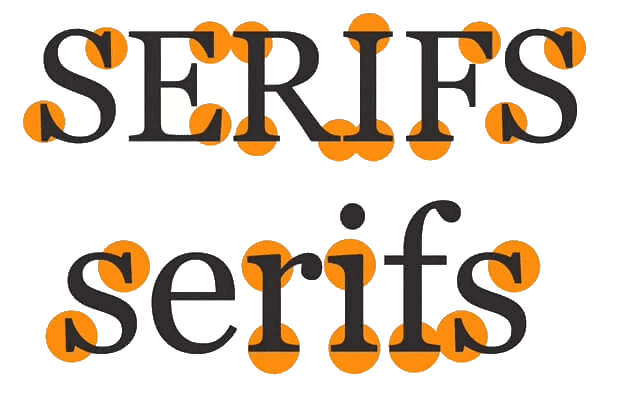

Serif Sans-serif

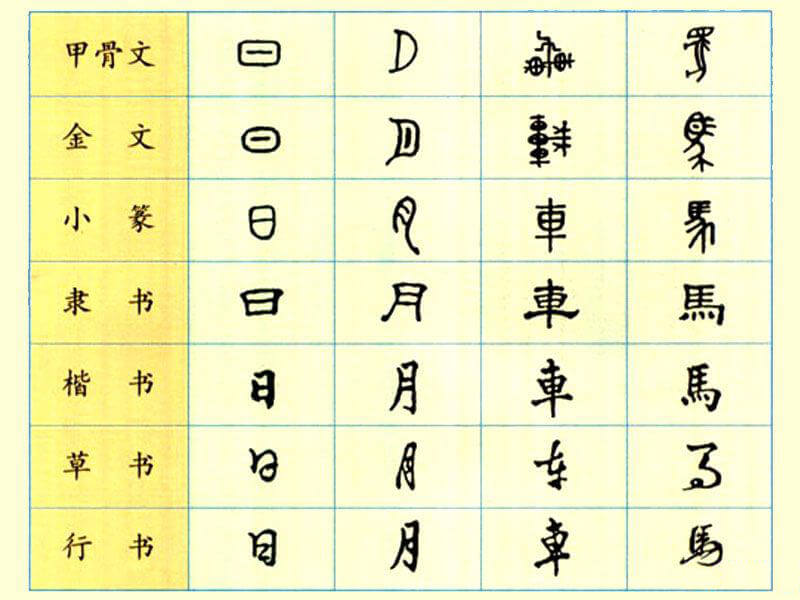

Evolution of Hanzi
SongTi
Song Ti
KaiTi
Kai Ti
FangSongTi
Fang Song Ti
HeiTi
Hei Ti
“Chinese-script projects are crazy. The scope is mind-blowing.”
—David Březina from The long, incredibly tortuous, and fascinating process of creating a Chinese font

The web is a unique medium of its own

Web fonts

The CSS3 Fonts specification describes the basic controls CSS provides for selecting and using fonts within documents.

http://bit.ly/css-font-history/

What is a font?

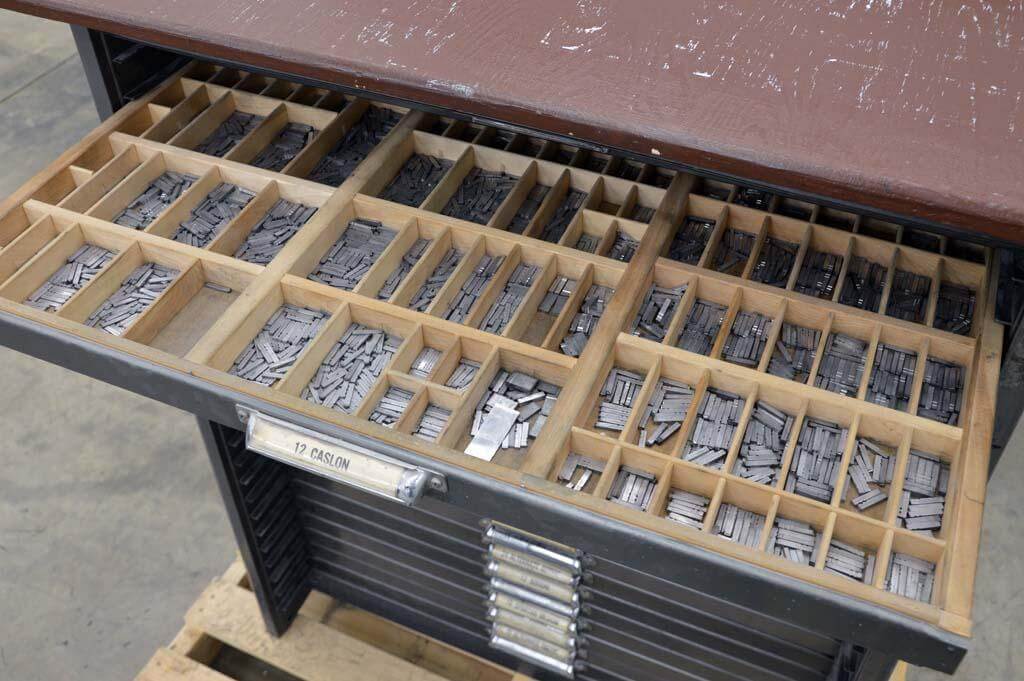

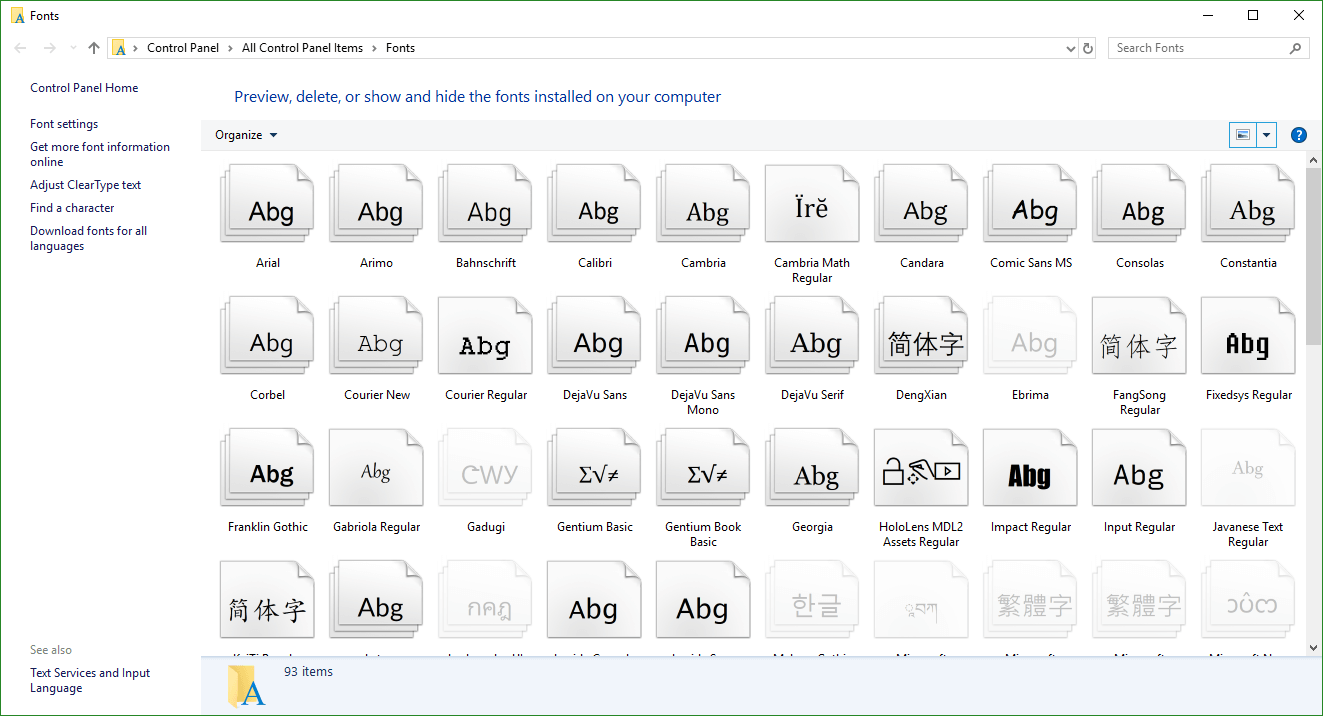

Analogue fonts Digital fonts

And what are glyphs?

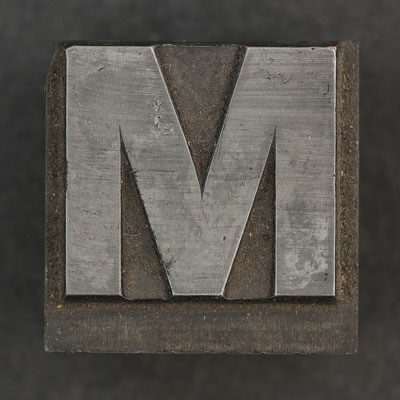

A metal sort AKA type
M

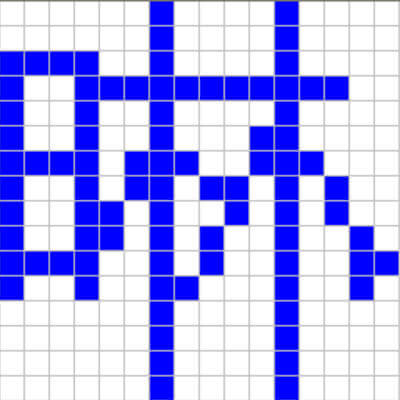

A bitmap glyph

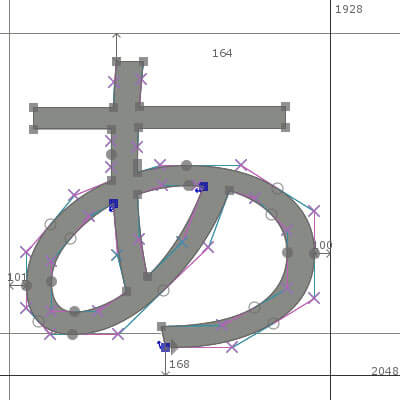

A vector glyph

Font formats for web use

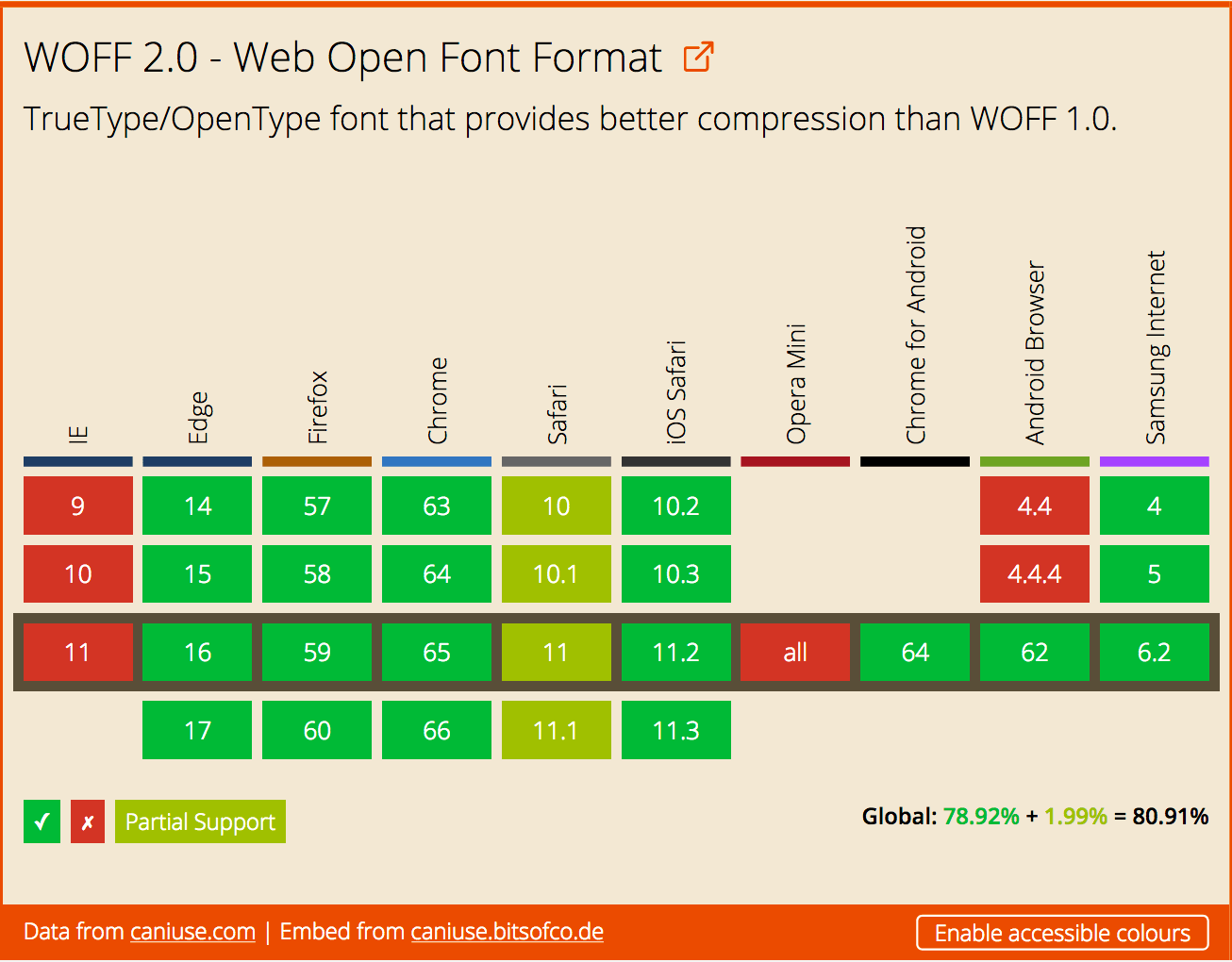

WOFF2 (Web Open Font Format 2)

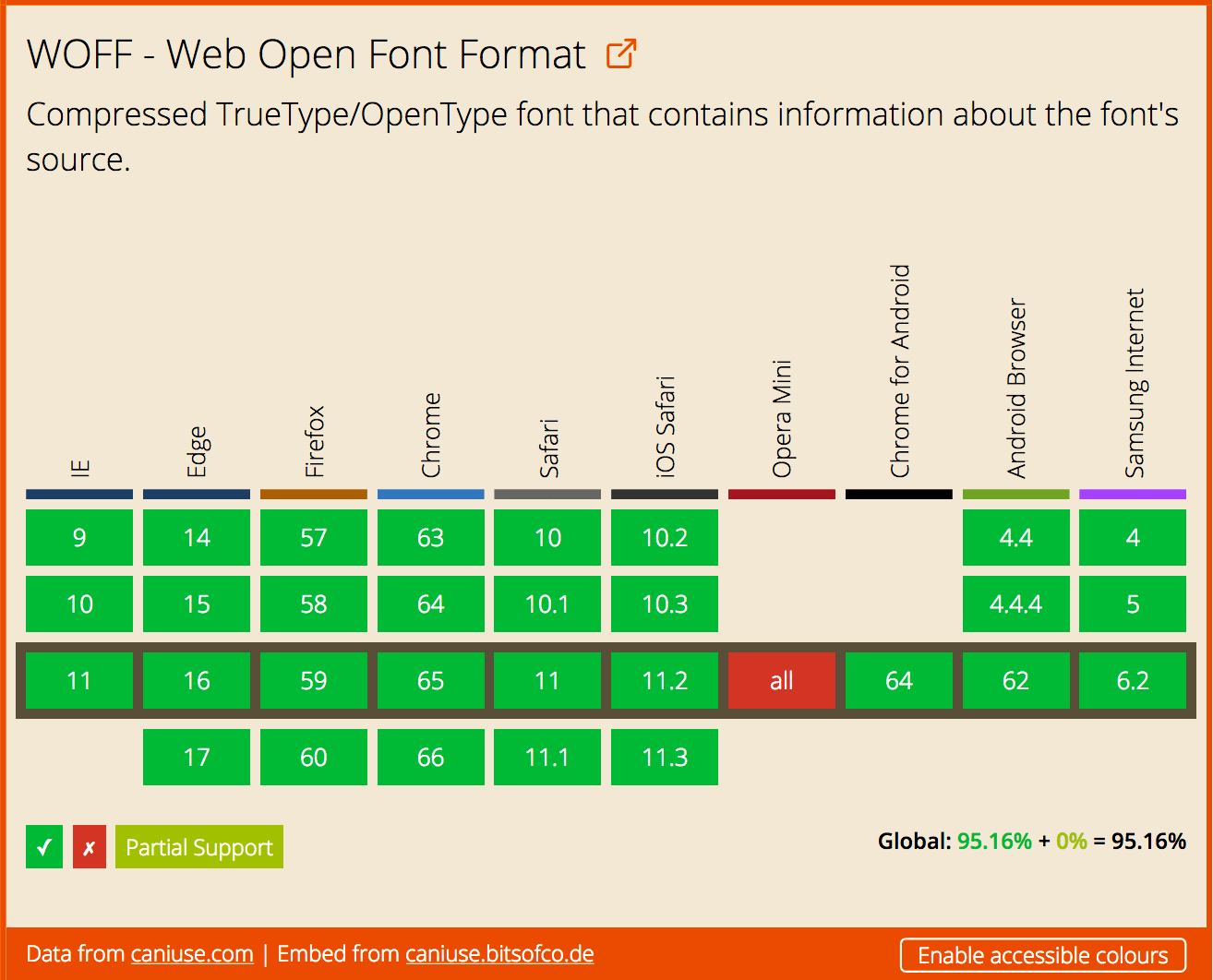

WOFF (Web Open Font Format)
OTF (OpenType)
TTF (TrueType)
EOT (Embedded Open Type)
SVG (Scalable Vector Graphics)

@font-face

@font-face {
    font-family: 'Inria Sans';
    src: url('inriasans-regular.woff2') format('woff2'),
         url('inriasans-regular.woff') format('woff');
  }

Anatomy of an @font-face rule

@font-face {
  font-family: <family-name>;
  src: [ <url> [format(<string> #)]? | <font-face-name> ] #;
  font-style: normal | italic | oblique ;
  font-weight: normal | bold | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900;
  font-stretch: normal | ultra-condensed | extra-condensed | condensed | semi-condensed | semi-expanded | expanded | extra-expanded | ultra-expanded;
  unicode-range: <urange> #;
  font-variant: normal | none | [ <common-lig-values> || <discretionary-lig-values> || <historical-lig-values> || <contextual-alt-values> || stylistic(<feature-value-name>) || historical-forms || styleset(<feature-value-name> #) || character-variant(<feature-value-name> #) || swash(<feature-value-name>) || ornaments(<feature-value-name>) || annotation(<feature-value-name>) || [ small-caps | all-small-caps | petite-caps | all-petite-caps | unicase | titling-caps ] || <numeric-figure-values> || <numeric-spacing-values> || <numeric-fraction-values> || ordinal || slashed-zero || <east-asian-variant-values> || <east-asian-width-values> || ruby ];
  font-feature-settings: normal | <feature-tag-value> #;
}
@font-face {
  font-family: 'Heiti Plus';
  src: local('Heiti SC');
  /* no range specified, defaults to entire range */
}

@font-face {
  font-family: 'Heiti Plus';
  src: url('fonts/andikanewbasic-r.woff2') format('woff2'),
       url('fonts/andikanewbasic-r.woff') format('woff');
  unicode-range: U+0-2FF; /* Unicode range for Latin characters */
}

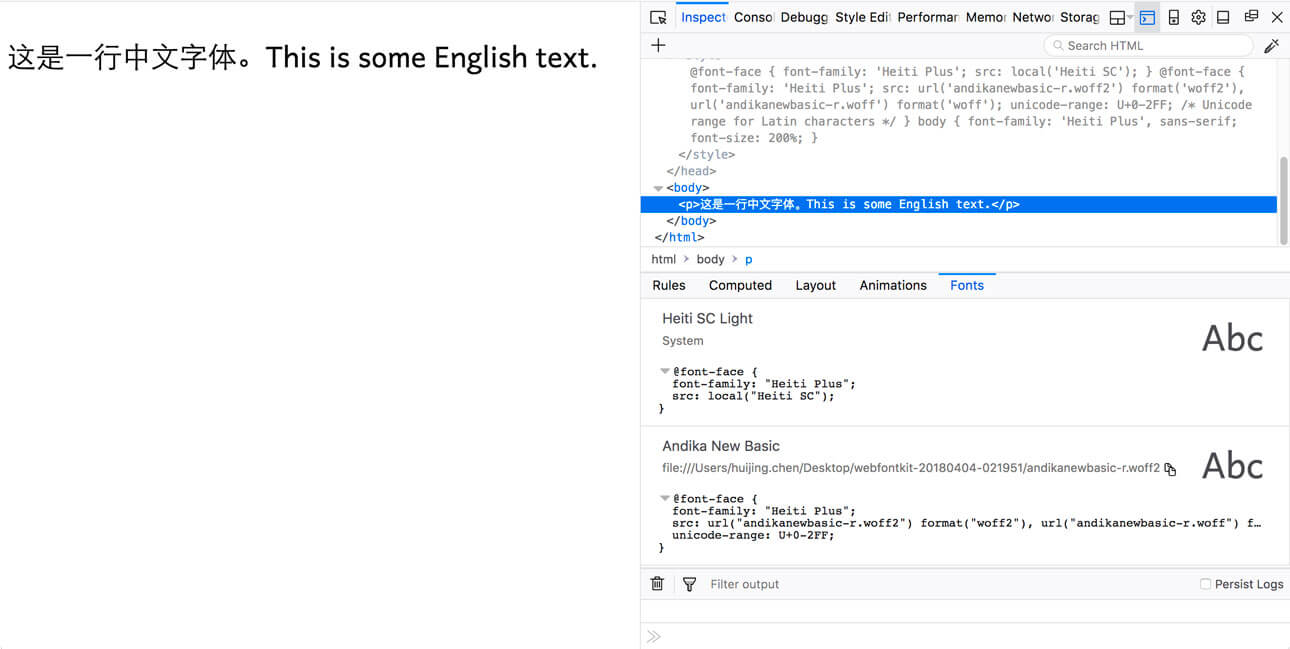

Unicode-range descriptor in action

Basic CSS font properties

font-size Indicates the desired height of the glyphs. Takes absolute or relative values.
font-weight Specifies the weight of the glyphs in the font. Can use keywords or numerical values.
font-style Allows italic or oblique faces to be selected.
font-stretch Selects a normal, condensed or expanded face from a font family. Range spans over 9 keywords.
font-size-adjust Adjusts the font-size to preserve the x-height of the first choice font.
font-synthesis Controls whether user agents are allowed to synthesize bold or oblique font faces when missing.

font-size-adjust

Font-size adjust example

See the Pen Demo of font-size-adjust by Chen Hui Jing (@huijing) on CodePen.

font-synthesis

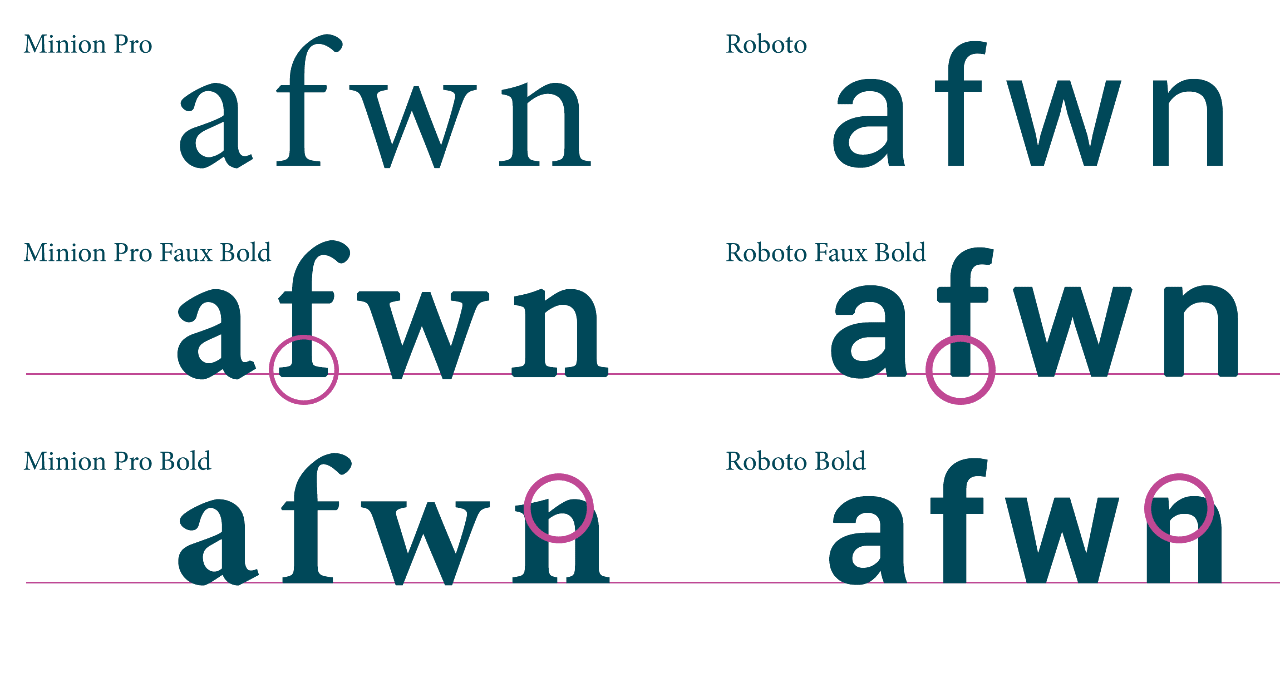

Faux bold effect

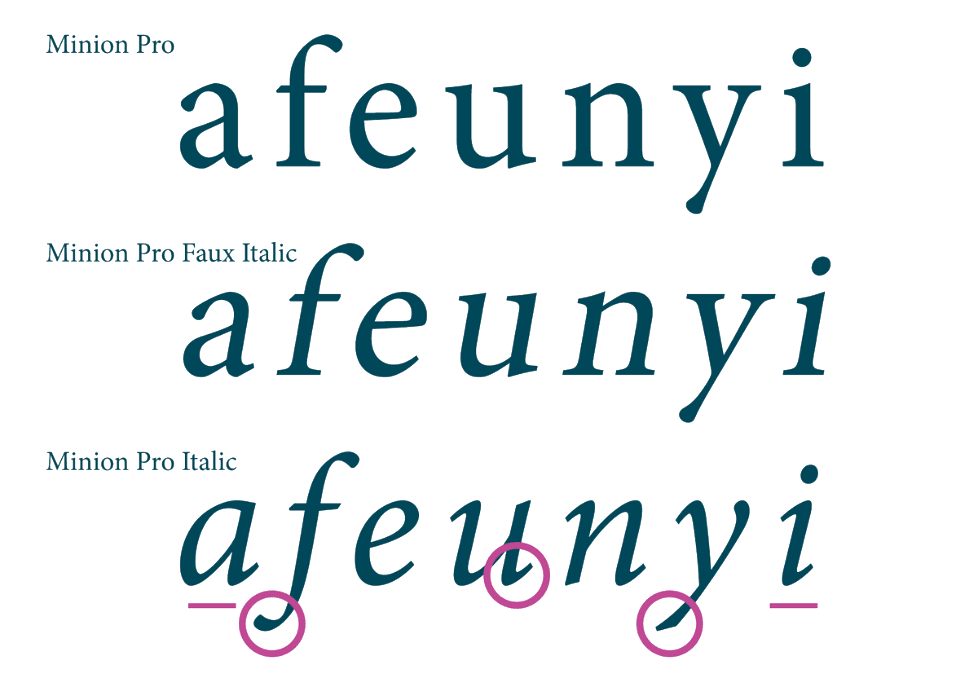

Faux italic effect
Image credit: Piotr Grochowski

Font feature properties

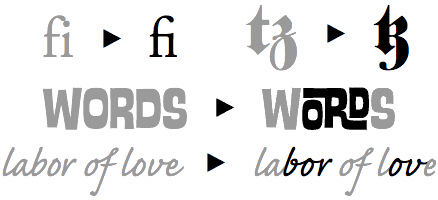

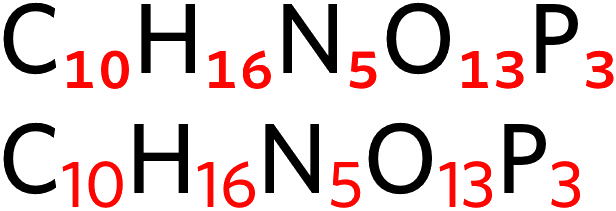

font-kerning font-variant-position font-variant-position-ligatures

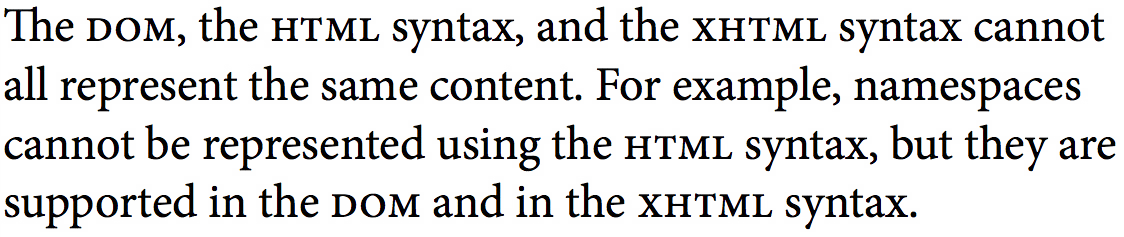

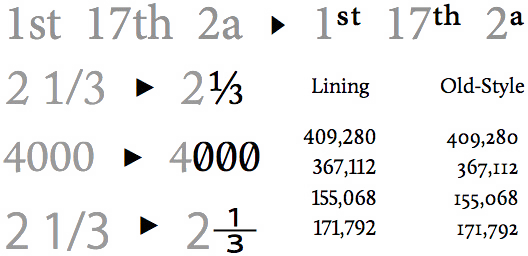

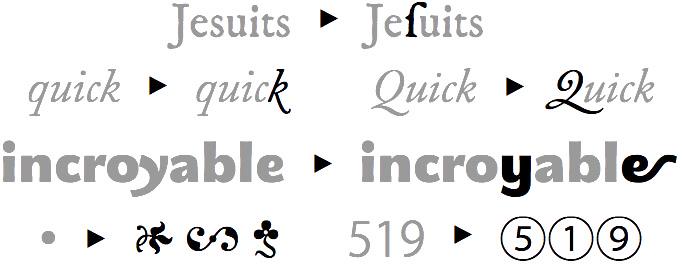

font-variant-numeric font-variant-caps font-variant-alternates

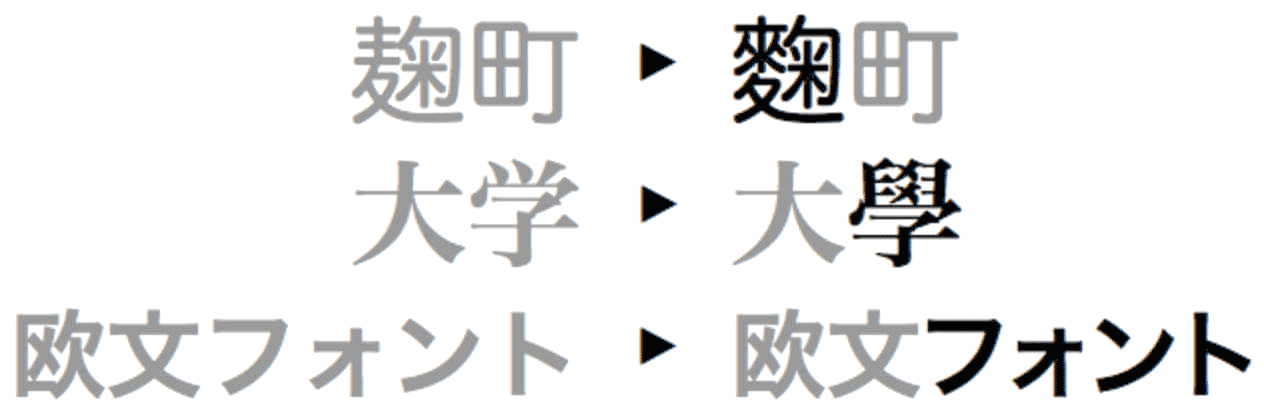

font-variant-east-asian

font-feature-settings

Provides low-level control of advanced OpenType features

  • aalt
  • abvf
  • abvm
  • abvs
  • afrc
  • akhn
  • blwf
  • blwm
  • blws
  • calt
  • case
  • ccmp
  • cfar
  • cjct
  • clig
  • cpct
  • cpsp
  • cswh
  • curs
  • cv01-cv99
  • c2pc
  • c2sc
  • dist
  • dlig
  • dnom
  • dtls
  • expt
  • falt
  • fin2
  • fin3
  • fina
  • flac
  • frac
  • fwid
  • half
  • haln
  • halt
  • hist
  • hkna
  • hlig
  • hngl
  • hojo
  • hwid
  • init
  • isol
  • ital
  • jalt
  • jp78
  • jp83
  • jp90
  • jp04
  • kern
  • lfbd
  • liga
  • ljmo
  • lnum
  • locl
  • ltra
  • ltrm
  • mark
  • med2
  • medi
  • mgrk
  • mkmk
  • mset
  • nalt
  • nlck
  • nukt
  • numr
  • onum
  • opbd
  • ordn
  • ornm
  • palt
  • pcap
  • pkna
  • pnum
  • pref
  • pres
  • pstf
  • psts
  • pwid
  • qwid
  • rand
  • rclt
  • rkrf
  • rlig
  • rphf
  • rtbd
  • rtla
  • rtlm
  • ruby
  • rvrn
  • salt
  • sinf
  • size
  • smcp
  • smpl
  • ss01
  • ss02
  • ss03
  • ss04
  • ss05
  • ss06
  • ss07
  • ss08
  • ss09
  • ss10
  • ss11
  • ss12
  • ss13
  • ss14
  • ss15
  • ss16
  • ss17
  • ss18
  • ss19
  • ss20
  • ssty
  • stch
  • subs
  • sups
  • swsh
  • titl
  • tjmo
  • tnam
  • tnum
  • trad
  • twid
  • unic
  • valt
  • vatu
  • vert
  • vhal
  • vjmo
  • vkna
  • vkrn
  • vpal
  • vrt2
  • vrtr
  • zero

Variable fonts

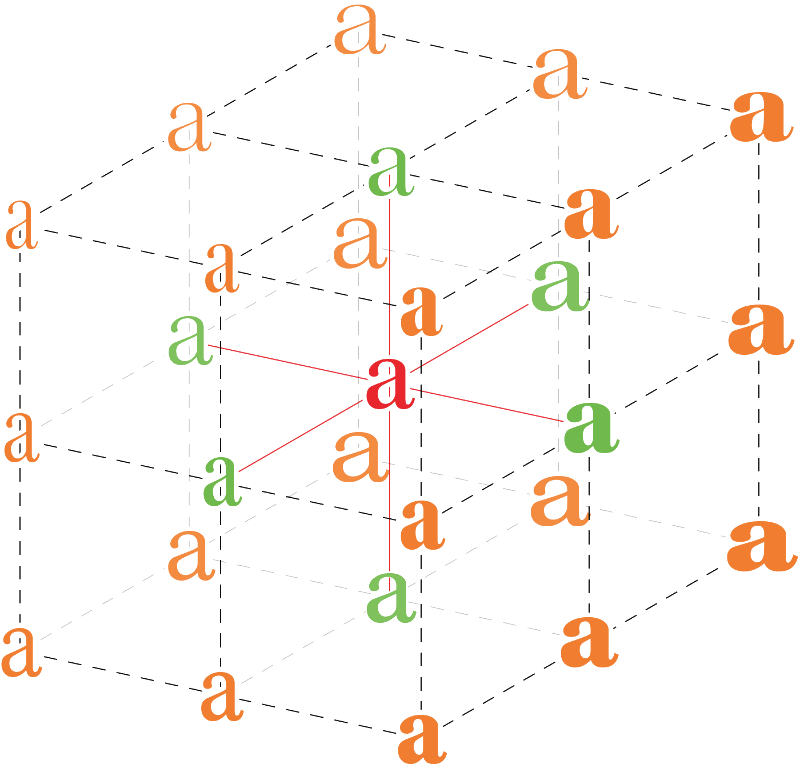

OpenType Variable font axes
Image credit: John Hudson
CSS property
Tag Name
Description
font-weight
'wght' Weight Used to vary stroke thicknesses to give variation from lighter to blacker.
font-style
'slnt' Slant Used to vary between upright and slanted text.
'ital' Italic Used to vary between non-italic and italic.
font-stretch 'wdth' Width Used to vary width of text from narrower to wider.
font-optical-sizing
'opsz' Optical size
Used to vary design to suit different text sizes.

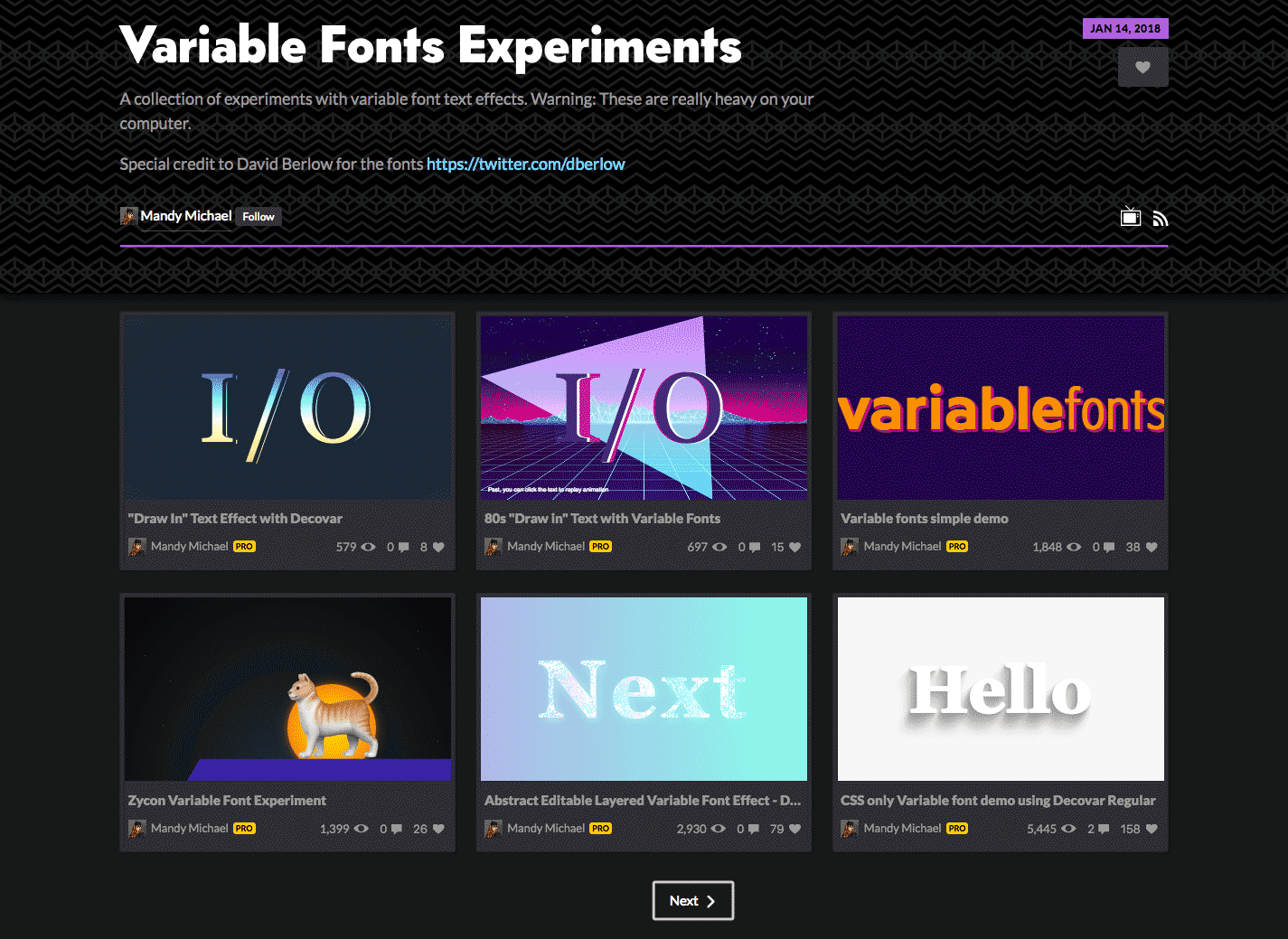

Mandy Michael's variable font demo showcase

See the Pen Grassy Text with Variable fonts. by Mandy Michael (@mandymichael) on CodePen.

font-variation-settings

Provides low-level control over OpenType or TrueType font variations

https://www.axis-praxis.org/

The magic of Writing Modes

CSS Writing Modes Level 3 defines CSS features to support for various international writing modes, such as left-to-right (e.g. Latin or Indic), right-to-left (e.g. Hebrew or Arabic), bidirectional (e.g. mixed Latin and Arabic) and vertical (e.g. Asian scripts).

You can make your browser literally turn on its side from left-to-right.

🙃

Or make it read from right-to-left.

🙂

Vertical text is fun!

writing-mode property

horizontal-tb 从1987到现在
vertical-rl 从1987到现在
vertical-lr 从1987到现在
sideways-rl* 从1987到现在
sideways-lr* 从1987到现在
Properties marked with * have been deferred to Writing Modes Level 4.

text-orientation property

从1987到现在
mixed
1987到现在
upright
从1987到现在
sideways

text-combine-upright property

民國106年7月3日
none
民國10673
all
民國10673
digits <integer>*
Codepen example for text-combine-upright

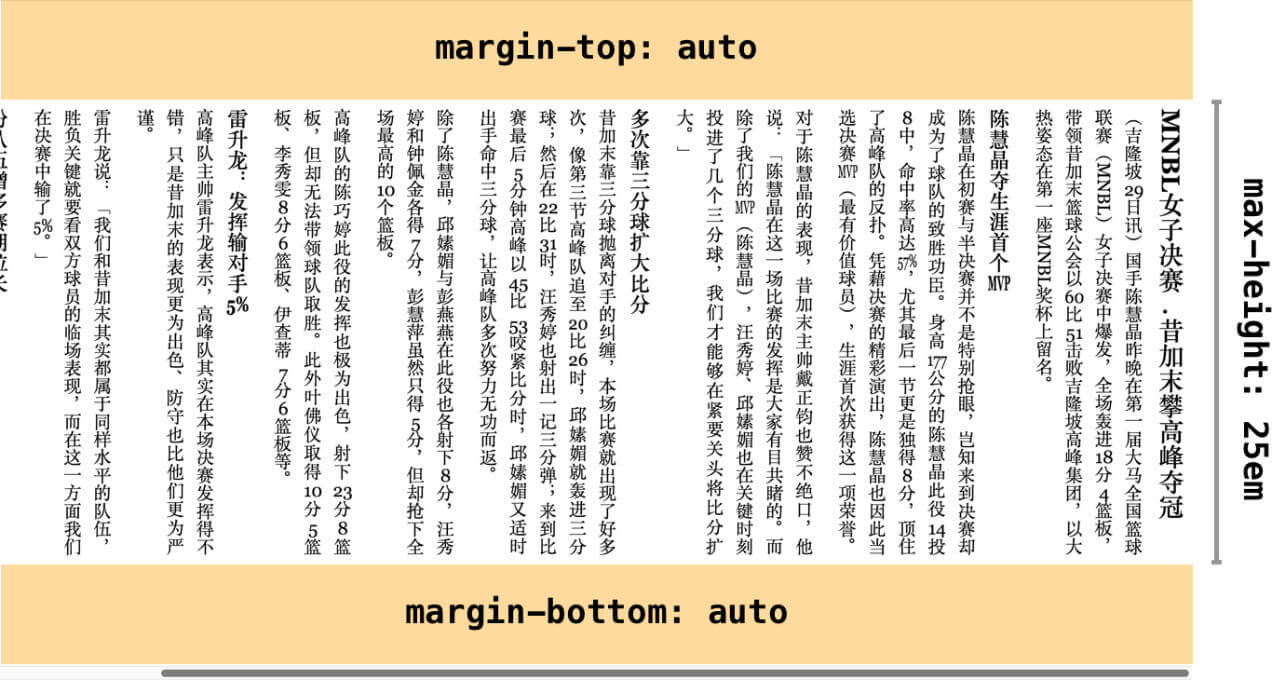

Vertical centring for vertical layout

Willem de Kooning

If Jackson Pollock was the public face of the New York avant-garde, Willem de Kooning could be described as an artist’s artist, who was perceived by many of his peers as its leader. He was born in Rotterdam, where he grew up in an impoverished household and attended the Rotterdam Academy, training in fine and commercial arts. In 1926, the adventurous young artist stowed away on a ship bound for Argentina. While the ship was docked in Virginia, de Kooning slipped off, skirted immigration, and made his way to New Jersey—and so began the rest of his life.

CSS Logical Properties

https://www.smashingmagazine.com/2018/03/understanding-logical-properties-values/

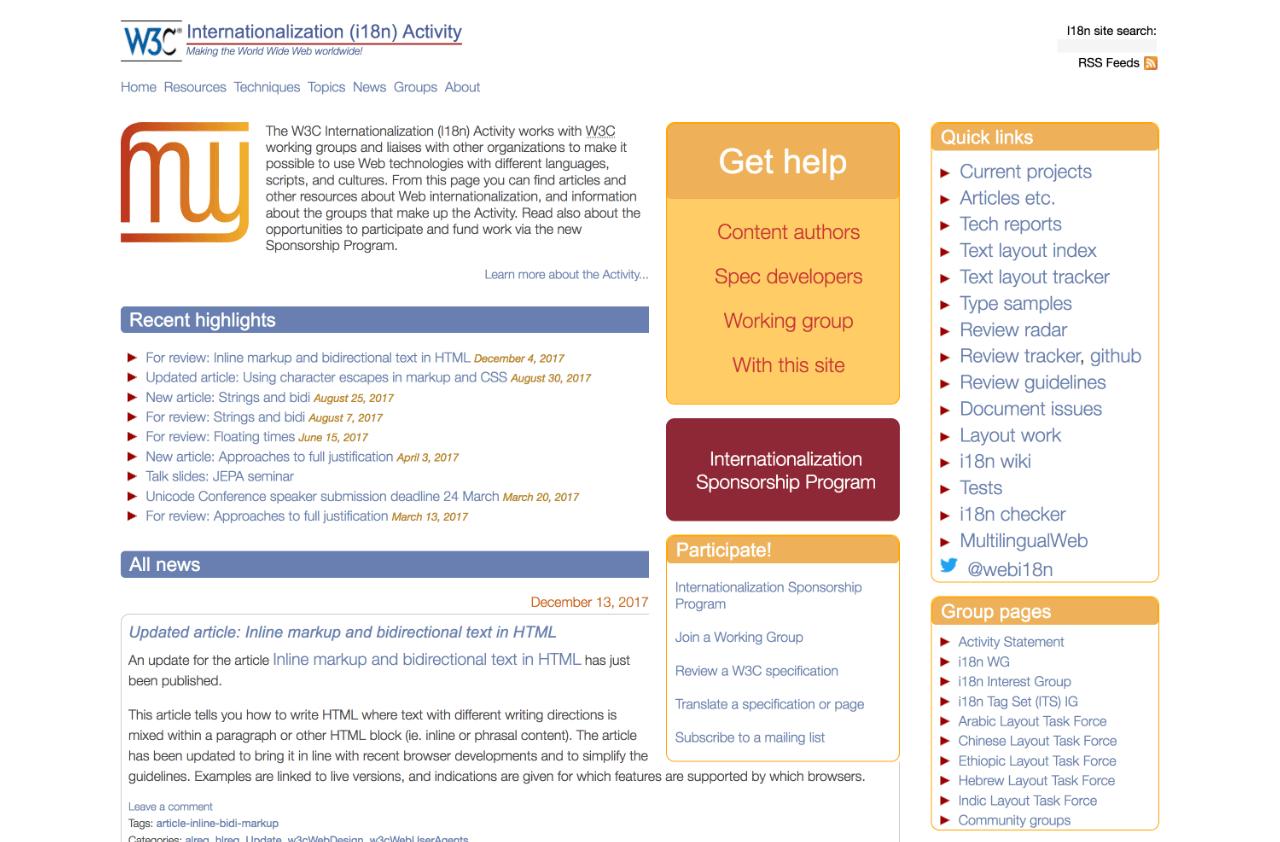

W3C Internationalization (I18n) Activity website

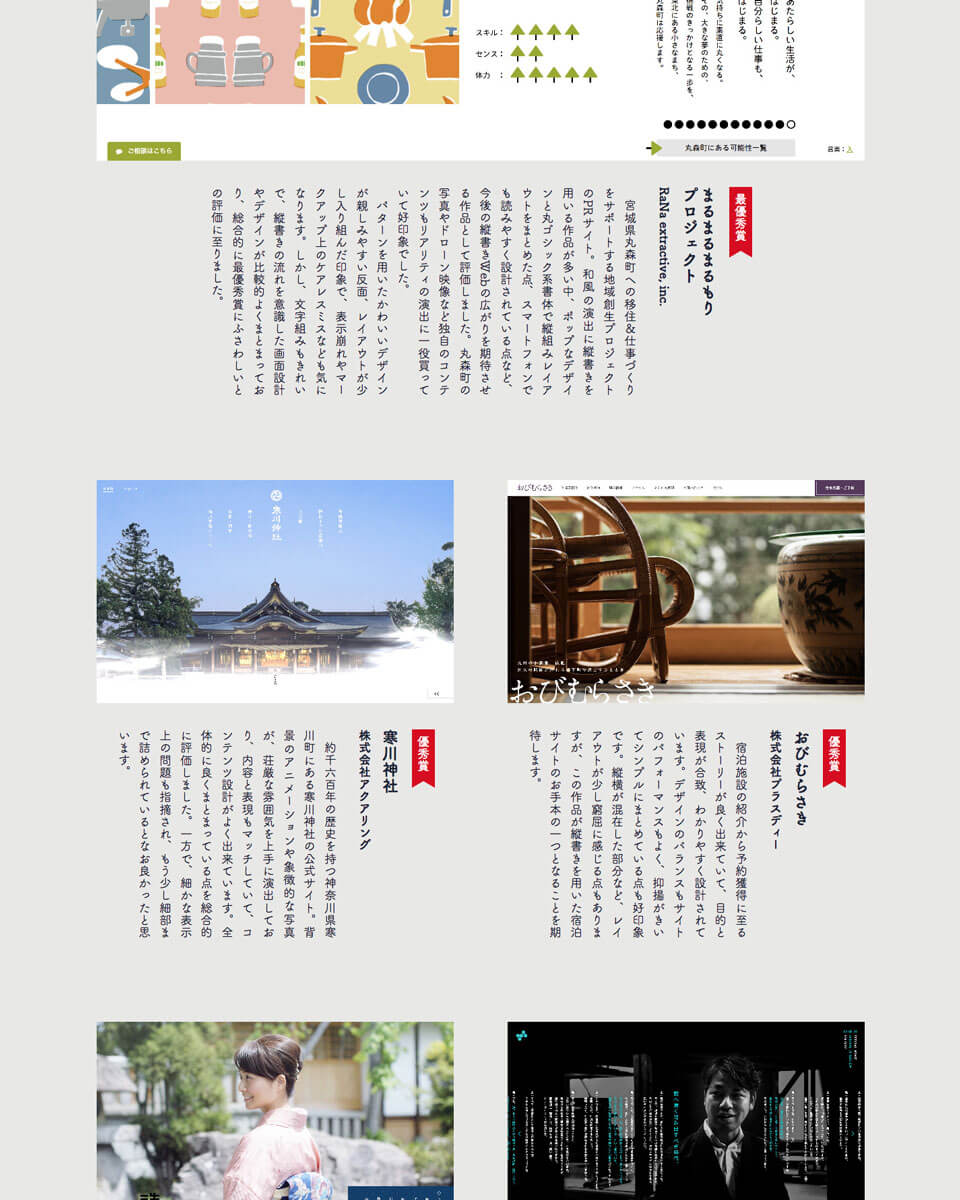

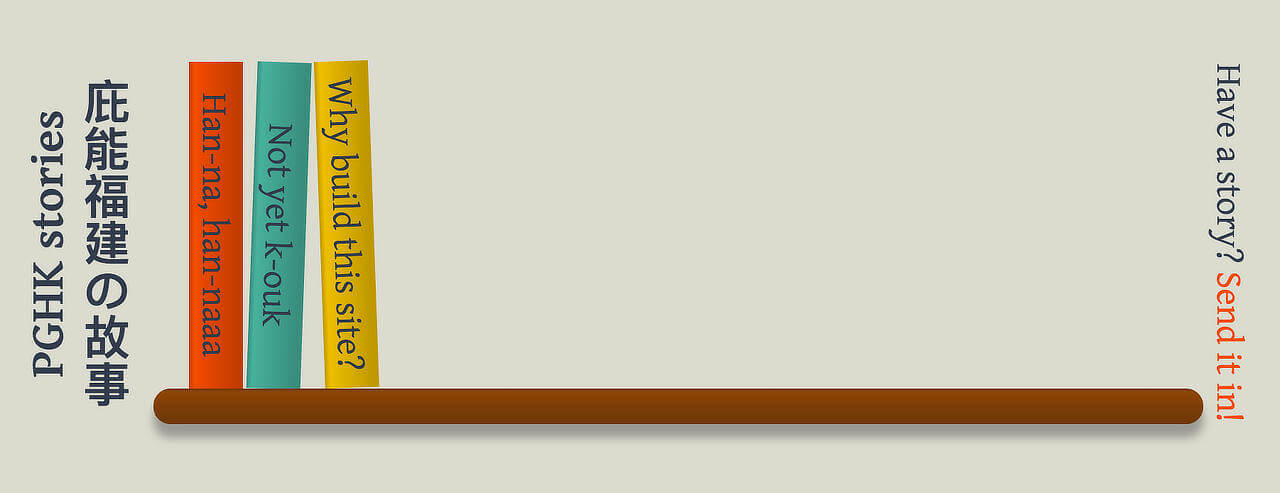

Vertical text with CSS

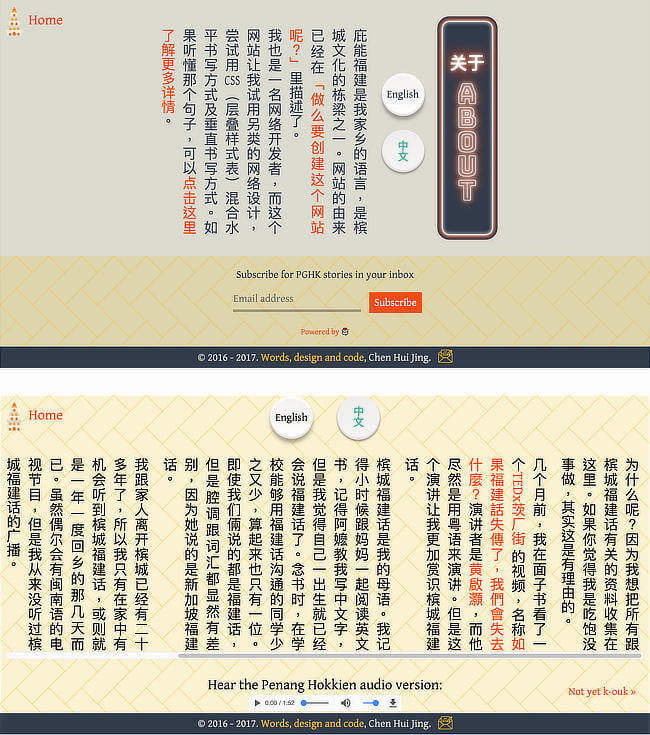

Bookshelf-style design with vertical text
Vertical blog tags
Vertical blog tags
Responsive vertical to horizontal layout
Vertical mobile navigation

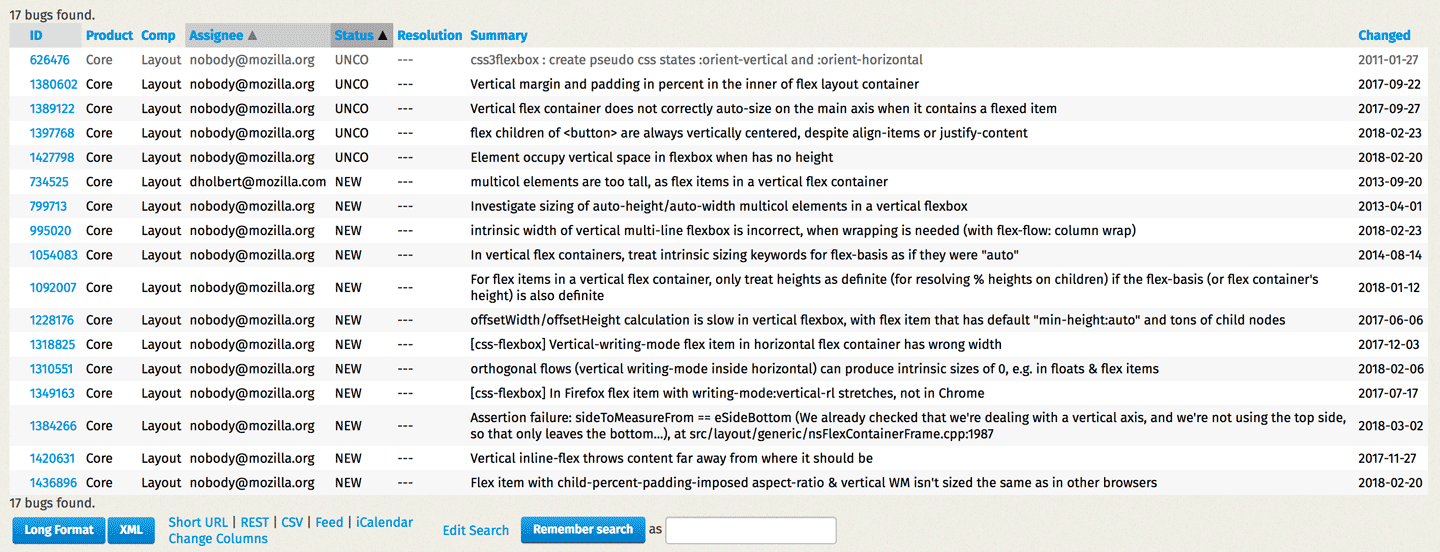

Bugs in Firefox
Bugs, bugs, bugs

A long list of references

Thank you!
