Creating art with CSS

Chen Hui Jing / @hj_chen

🇲🇾 👾 🏀 🚲 🖌️ 👟 💻 🖊️ 🎙 🦊 🥑 🧗 🏳️‍🌈

@hj_chen

🥑 Developer Advocate 🥑

What is Art?

Art

The application of skill to the production of the beautiful by imitation or design, or an occupation in which skill is so employed, as in painting and sculpture; one of the fine arts; as, he prefers art to literature.

—Webster's 1913

Basic shapes with CSS

width & height
border-radius
border

Rectangles

.rectangle {
  width: 60vmin;
  height: 30vmin;
  background: #bababa;
}

The box model

The `border-radius` property

Diagram of how border-radius is used to create a circle

Circles

.circle {
  width: 30vmin;
  height: 30vmin;
  background: #bababa;
  border-radius: 50%; /* This is the key line, right here */
}

The CSS for making is circle is not too complicated, but there is a lot more to the border-radius property.

Semi-circles

.semicircle-top {
  width: 30vmin;
  height: 15vmin;
  border-radius: 15vmin 15vmin 0 0;
}

.semicircle-left {
  height: 30vmin;
  width: 15vmin;
  border-radius: 15vmin 0 0 15vmin;
}

.semicircle-bottom {
  width: 30vmin;
  height: 15vmin;
  border-radius: 0 0 15vmin 15vmin;
}

.semicircle-right {
  height: 30vmin;
  width: 15vmin;
  border-radius: 0 15vmin 15vmin 0;
}

Quarter-circles

.quartercircle-nw {
  height: 15vmin;
  width: 15vmin;
  border-radius: 100% 0 0 0;
}

.quartercircle-ne {
  height: 15vmin;
  width: 15vmin;
  border-radius: 0 100% 0 0;
}

.quartercircle-se {
  height: 15vmin;
  width: 15vmin;
  border-radius: 0 0 100% 0;
}

.quartercircle-sw {
  height: 15vmin;
  width: 15vmin;
  border-radius: 0 0 0 100%;
}

And if we want a quarter-circle, the border-radius of any one of the corners has to expand to 100% of the width of the box to achieve this desired effect.

Triangles

Transparent is a colour in CSS.

Most of the time, we don't want all 4 triangles at the same time. So we make the other 3 invisible by setting a border colour of transparent on the sides we don't want.

Isosceles Triangles

.triangle-top {
  border-right: 15vmin solid transparent;
  border-bottom: 15vmin solid #bababa;
  border-left: 15vmin solid transparent;
}

.triangle-right {
  border-top: 15vmin solid transparent;
  border-bottom: 15vmin solid transparent;
  border-left: 15vmin solid #bababa;
}

.triangle-bottom {
  border-top: 15vmin solid #bababa;
  border-right: 15vmin solid transparent;
  border-left: 15vmin solid transparent;
}

.triangle-left {
  border-top: 15vmin solid transparent;
  border-bottom: 15vmin solid transparent;
  border-right: 15vmin solid #bababa;
}

Right-angled Triangles

Complex shapes with CSS

clip-path
border-radius
transform

Polygons

.trapezium {
  width: 60vmin;
  height: 30vmin;
  background: #bababa;
  clip-path: polygon(33% 0, 67% 0, 100% 100%, 0% 100%);
}

.rabbet {
  width: 30vmin;
  height: 30vmin;
  background: #bababa;
  clip-path: polygon(0% 15%, 15% 15%, 15% 0%, 85% 0%, 85% 15%, 100% 15%, 100% 85%, 85% 85%, 85% 100%, 15% 100%, 15% 85%, 0% 85%);
}

.star {
  width: 45vmin;
  height: 45vmin;
  background: #bababa;
  clip-path: polygon(50% 0%, 61% 35%, 98% 35%, 68% 57%, 79% 91%, 50% 70%, 21% 91%, 32% 57%, 2% 35%, 39% 35%);
}

Irregular shapes

Diagram explaning how border radius works

Irregular shapes

div:first-child {
  width: 45vmin;
  height: 45vmin;
  background: $linkColor;
  border-radius: 100% 0% 60% 40% / 60% 0% 100% 40%;
}

div:nth-child(2) {
  width: 45vmin;
  height: 45vmin;
  background: $linkColor;
  border-radius: 84% 16% 74% 26% / 30% 33% 67% 70%;
}

div:nth-child(3) {
  width: 45vmin;
  height: 45vmin;
  background: $linkColor;
  border-radius: 37% 63% 21% 79% / 64% 79% 21% 36%;
}

This opens up many possibilities for irregular shapes. Your border-radius could potentially have up to 8 values. But the order remains the same, for example, the first corner for top-left, has a horizontal radius value of 100%, and a vertical radius value of 60%.

https://9elements.github.io/fancy-border-radius/

Transforms

Transform functions include, rotate(), scale(), translate() and skew(). Each transform is cumulative and operate from their transform-origin.

Transforms

/* If you need multiple transforms, do this */
.element {
  transform: translate(-10px, -20px) scale(2) rotate(45deg)
}

/* Do NOT do this */
.element {
  transform: translate(-10px, -20px);
  transform: scale(2);
  transform: rotate(45deg);
}

Creating/combining multiple shapes

::before & ::after
Positioning
linear-gradient() & radial-gradient()
box-shadow

A single `div`

Pseudo-elements

::before and ::after

.element::before {
  content: '';
  display: block;
  width: 50%;
  height: 50%;
}

Must have the content property to work

At least have empty quotes

Not visible in the page's source, only in CSS

Positioning

static, relative, absolute, sticky

A CSS heart

Gradients

Can be used in any property that accepts images, e.g. background, list-style-image etc.

linear-gradient( [ <angle> | <side-or-corner> ]?, <color-stop-list> )

First argument specifies gradient line, defaults to to-bottom if omitted. Can use angle or keyword.

<color-stop-list> = <color-stop>#{2,}
<color-stop> = <color> <length-percentage>?

At least 2 values, no maximum limit. Between 2 colour stops, the line's colour is linearly interpolated between the 2 colours.

For clean change between 2 colours, have 2 colour stops at the same position, i.e. at least 4 <color-stop> values needed.

.element {
  background-image: linear-gradient(orange, green)
}

.element {
  background-image: linear-gradient(orange, orange 50%, green 50%, green)
}

Gradients

Box shadow

Multiple box shadows are a thing

box-shadow: [horizontal offset] [vertical offset] [blur radius] [optional spread radius] [color];

Make use of the offsets for positioning, and the blur radius for sizing

Text shadow

Similar to box shadows but is added to text instead.

text-shadow: [horizontal offset] [vertical offset] [optional blur radius] [color];

Say equilateral quadrilateral really fast 🚀

Putting some of it together

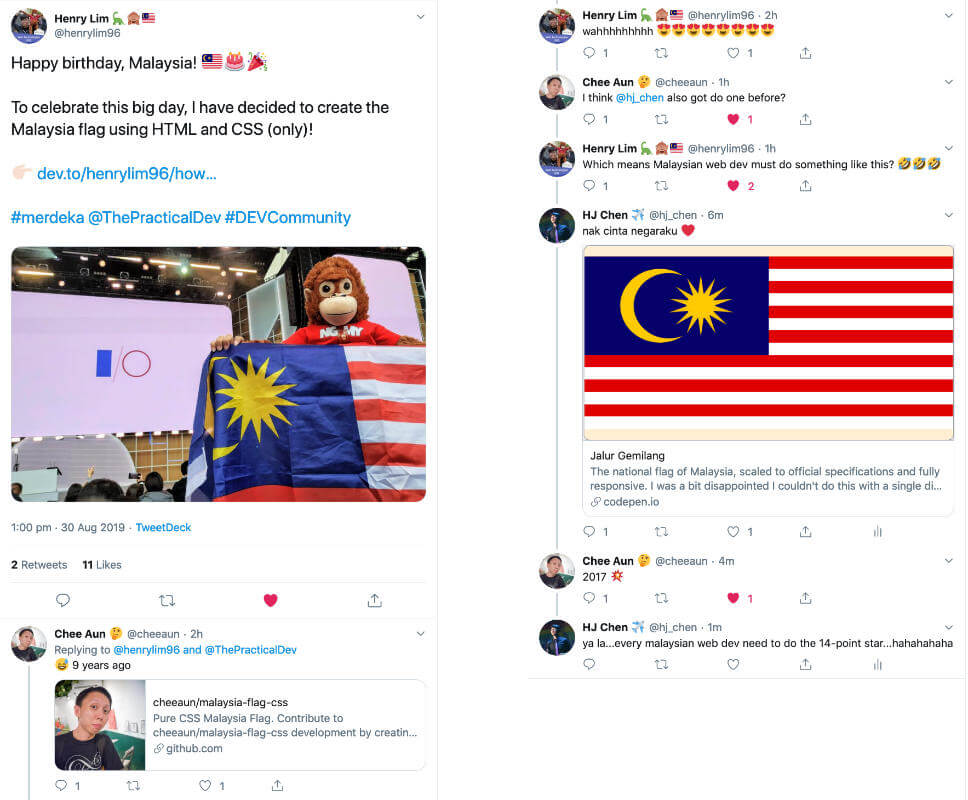

It's Malaysia's 62nd birthday today.

.jalur-gemilang {
  width: 15em;
  height: 7.5em;
  position: relative;
  background-image: linear-gradient(
                      to bottom,
                      #cc0001 0%, #cc0001 calc(100% / 14),
                      #fff calc(100% / 14), #fff calc(100% / 14 * 2),
                      #cc0001 calc(100% / 14 * 2), #cc0001 calc(100% / 14 * 3),
                      #fff calc(100% / 14 * 3), #fff calc(100% / 14 * 4),
                      #cc0001 calc(100% / 14 * 4), #cc0001 calc(100% / 14 * 5),
                      #fff calc(100% / 14 * 5), #fff calc(100% / 14 * 6),
                      #cc0001 calc(100% / 14 * 6), #cc0001 calc(100% / 14 * 7),
                      #fff calc(100% / 14 * 7), #fff calc(100% / 14 * 8),
                      #cc0001 calc(100% / 14 * 8), #cc0001 calc(100% / 14 * 9),
                      #fff calc(100% / 14 * 9), #fff calc(100% / 14 * 10),
                      #cc0001 calc(100% / 14 * 10), #cc0001 calc(100% / 14 * 11),
                      #fff calc(100% / 14 * 11), #fff calc(100% / 14 * 12),
                      #cc0001 calc(100% / 14 * 12), #cc0001 calc(100% / 14 * 13),
                      #fff calc(100% / 14 * 13), #fff calc(100%));
}

.jalur-gemilang::before {
  content: "";
  display: block;
  height: calc(7.5em / 14 * 8);
  width: 7.5em;
  background-color: #010066;
  position: absolute;
}

.jalur-gemilang::after {
  content: "";
  display: block;
  width: calc(7.5em / 14 * 6);
  height: calc(7.5em / 14 * 6);
  background-color: #ffcc00;
  position: absolute;
  top: calc(7.5em / 14);
  left: calc(7.5em / 14 * (11 / 4));
  border-radius: 50%;
}

The next part would be the crescent. If you think about it, a crescent can be made with 2 circles, one slightly larger than the other. As long as the smaller circle is the same colour as the background, we can offset it until we get a crescent in the width and direction we want. So we can use the ::after pseudo-element here for the larger circle.

.bulan {
  width: calc(7.5em / 14 * (16 / 3));
  height: calc(7.5em / 14 * (16 / 3));
  background-color: #010066;
  position: absolute;
  top: calc(7.5em / 14 * (4 / 3));
  left: calc(7.5em / 14 * (15 / 4));
  border-radius: 50%;
  z-index: 2;
}

.bintang {
  position: absolute;
  top: calc(7.5em / 14 * 3);
  left: calc(7.5em / 14 * (31 / 4));
  z-index: 2;
}

.segi {
  width: calc(7.5em / 14 * (3.14159 / 7));
  height: calc(7.5em / 7);
  background: #ffcc00;
  position: absolute;
  left: calc(7.5em / 14 - ((7.5em / 14 * (3.14159 / 14))) / 2);
}

.segi::before {
  content: '';
  display: block;
  border-bottom: calc(7.5em / 14 * (3 / 2)) solid #ffcc00;
  border-left: calc(7.5em / 14 * (3.14159 / 14)) solid transparent;
  border-right: calc(7.5em / 14 * (3.14159 / 14)) solid transparent;
  position: absolute;
  top: calc(-7.5em / 14 * (3 / 2));
}

Remember that 1 element can actually become 3, so use the ::before pseudo-element with the triangle border trick for the top point.

.segi::after {
  content: '';
  display: block;
  border-top: calc(7.5em / 14 * (3 / 2)) solid #ffcc00;
  border-left: calc(7.5em / 14 * (3.142 / 14)) solid transparent;
  border-right: calc(7.5em / 14 * (3.142 / 14)) solid transparent;
  position: absolute;
  bottom: calc(-7.5em / 14 * (3 / 2));
}

And do the same with ::after for the bottom point.

.segi:nth-child(2) {
  transform: rotate(calc(360deg / 14));
}

.segi:nth-child(3) {
  transform: rotate(calc((360deg / 14) * 2);
}

.segi:nth-child(4) {
  transform: rotate(calc((360deg / 14) * 3);
}

.segi:nth-child(5) {
  transform: rotate(calc((360deg / 14) * 4);
}

.segi:nth-child(6) {
  transform: rotate(calc((360deg / 14) * 5);
}

.segi:nth-child(7) {
  transform: rotate(calc((360deg / 14) * 6);
}

Jalur Gemilang

Happy 62nd birthday, Malaysia!

Cinta negaraku ❤️

A single div Singapore flag

Some inspiration for you…

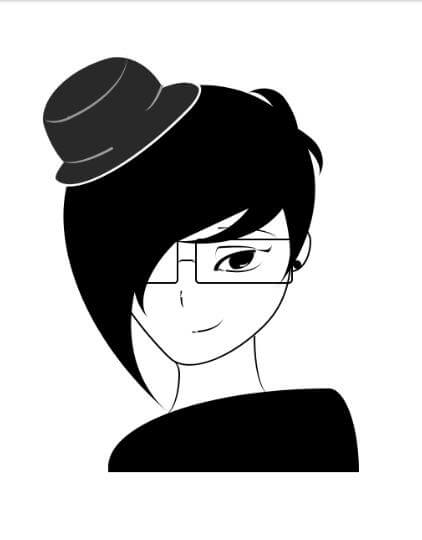

Anime inspired self portrait- with hat in pure CSS — https://codepen.io/SmokinClove/pen/zYOoVJe

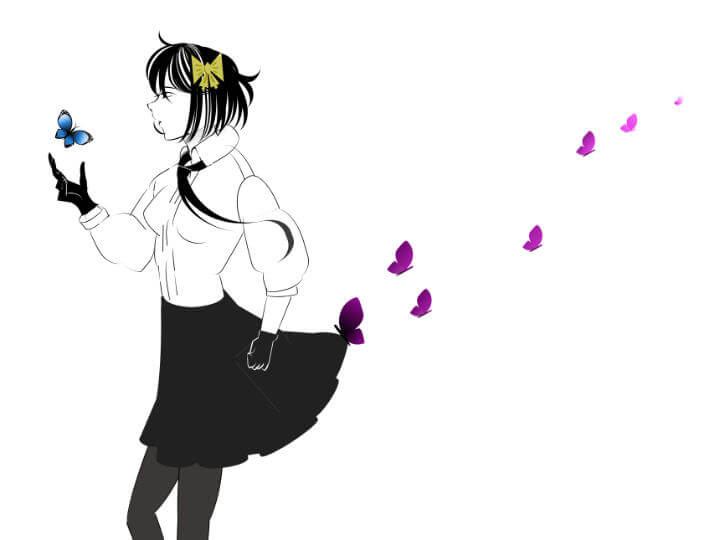

Yosano Akiko - 与謝野晶子 in pure CSS — https://codepen.io/SmokinClove/pen/VoEbME

By Nguyen Tuong Van

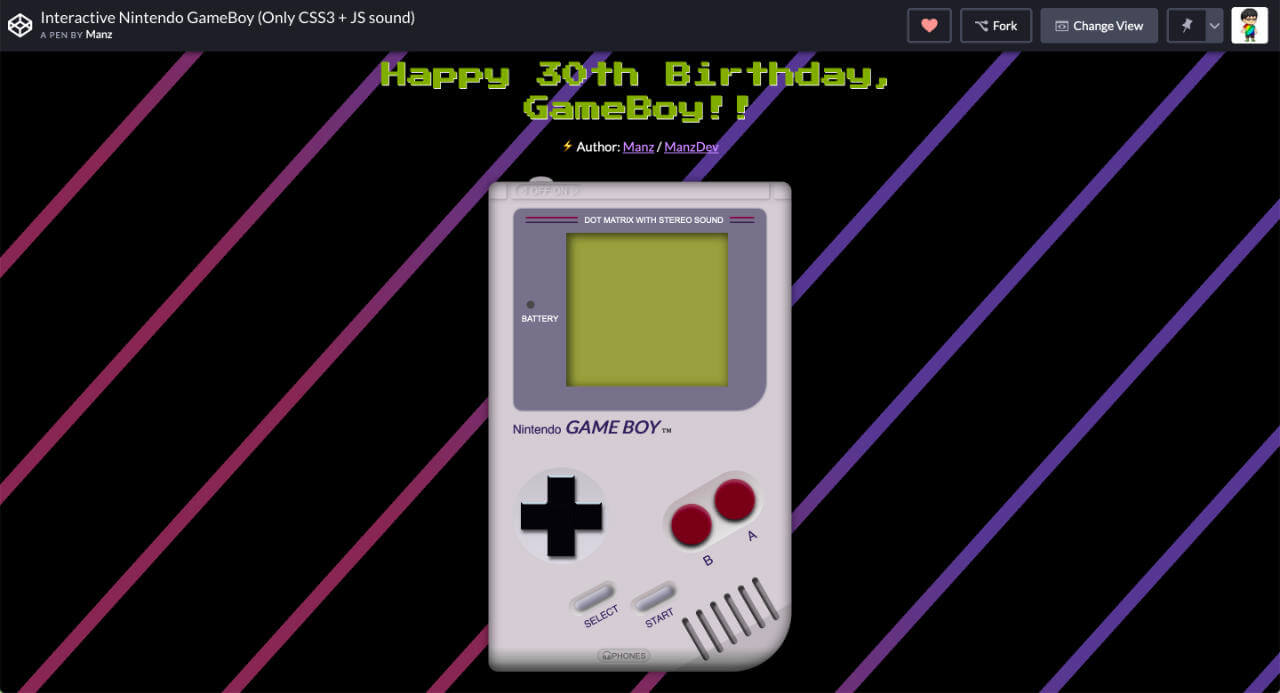

Nintendo GameBoy in pure CSS — Interactive Nintendo GameBoy (Only CSS3 + JS sound) by Manz (@manz)

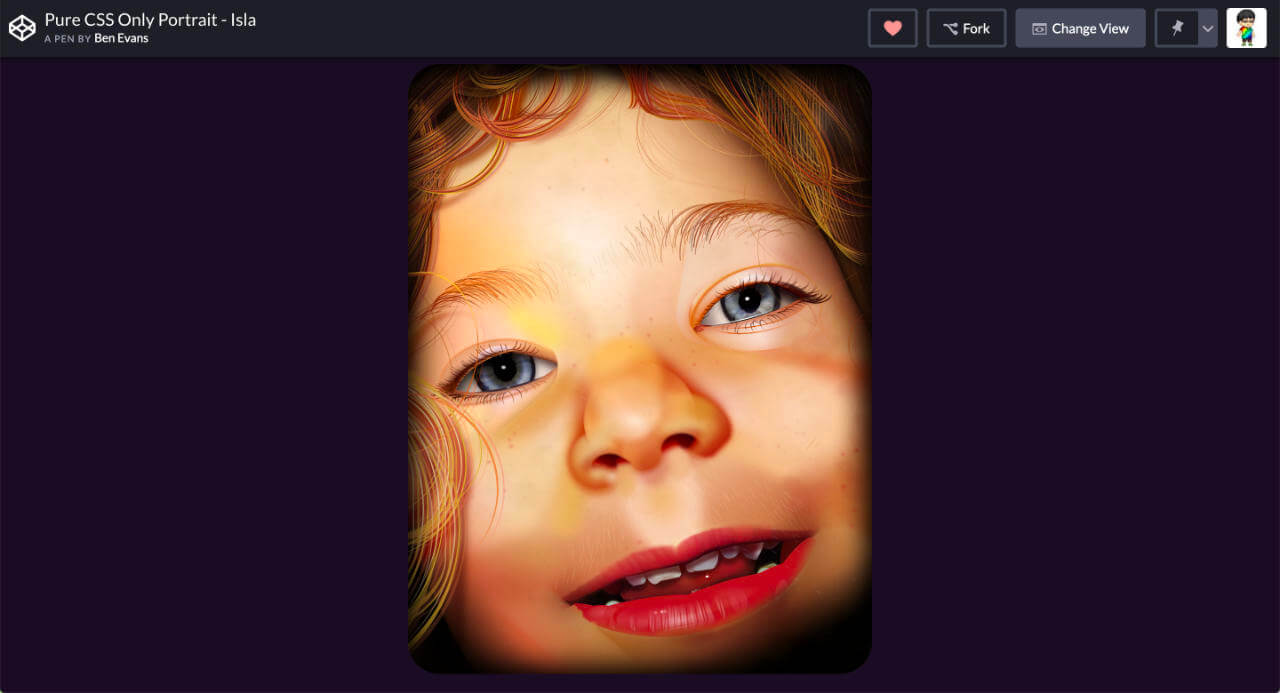

Portrait of Isla in pure CSS — Pure CSS Only Portrait - Isla by Ben Evans (@ivorjetski)

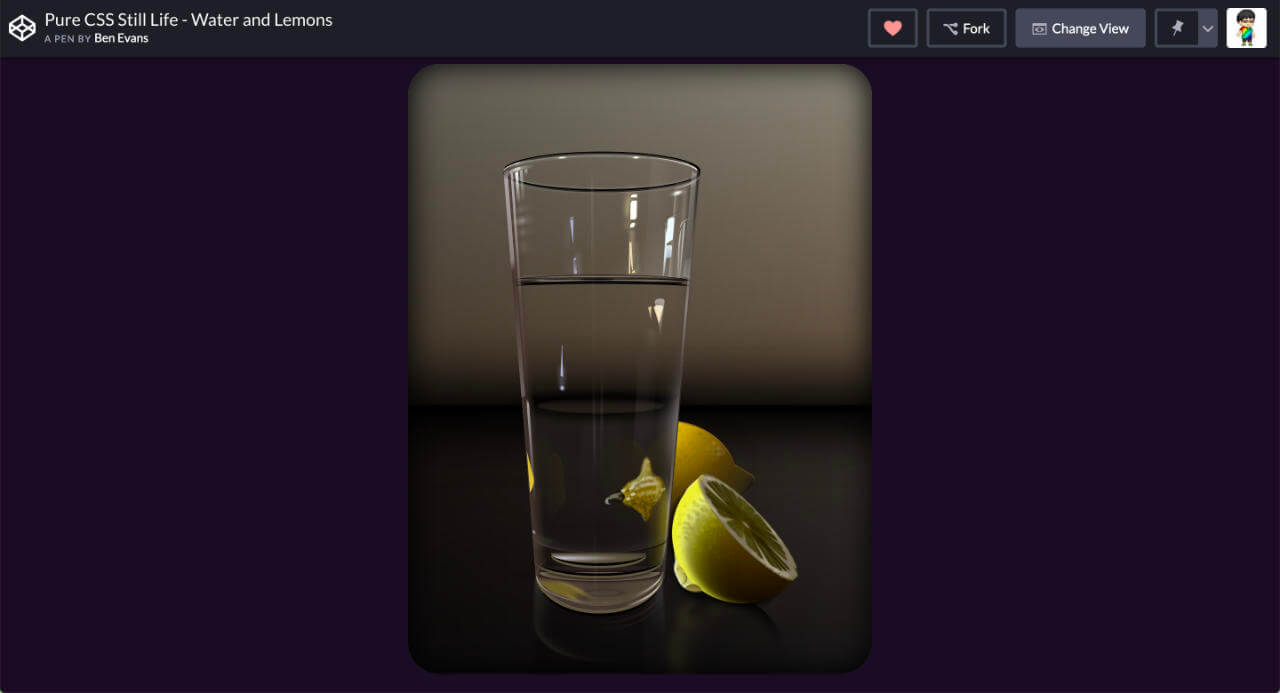

Still Life - Water and Lemons in pure CSS — Pure CSS Still Life - Water and Lemons by Ben Evans (@ivorjetski)

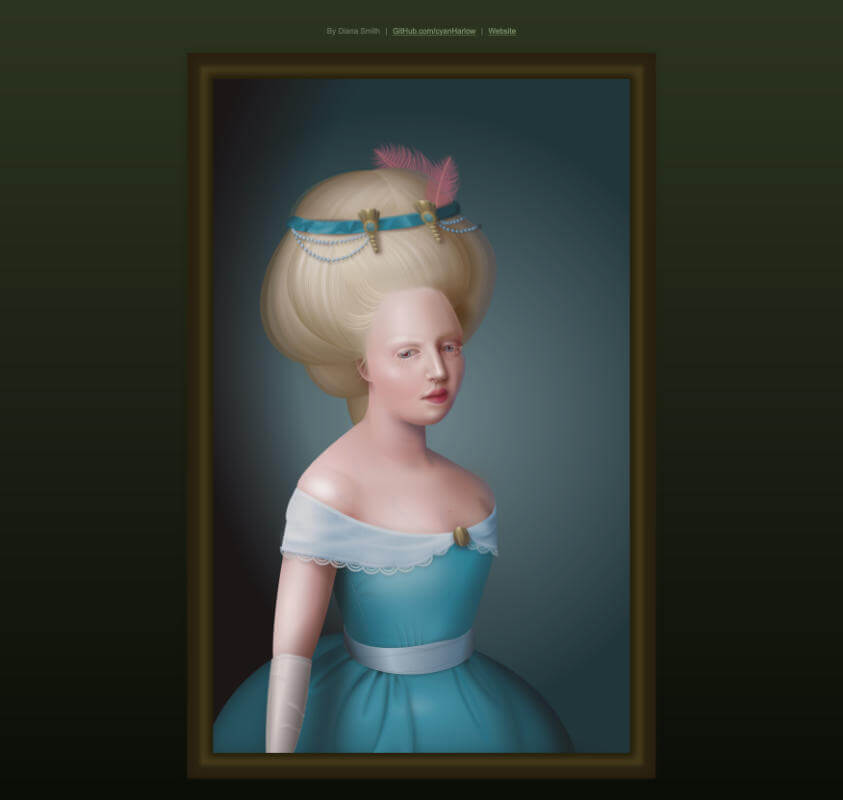

Pure CSS Francine by Diana Smith — http://diana-adrianne.com/purecss-francine/ by Diana Smith

Useless is not worthless.

—Charlie Gerard

Thank you!

https://www.chenhuijing.com

@hj_chen

@huijing

Header font is Rakkas by Zeynep Akay
Body font is Vollkorn by Friedrich Althausen
