Why I love data files in Jekyll

Chen Hui Jing / @hj_chen

🇲🇾 👾 🏀 🚲 🖌️ 👟 💻 🖊️ 🎙 🦊 🥑 🧗 🏳️‍🌈

@hj_chen

🥑 Developer Advocate 🥑

What are data files?

Custom data that can be accessed via the Liquid templating system
Supported formats:
- YAML
- JSON
- CSV
- TSV
Helps avoid repetition in your templates
Keeps the focus on the content

Using data files (1/2)

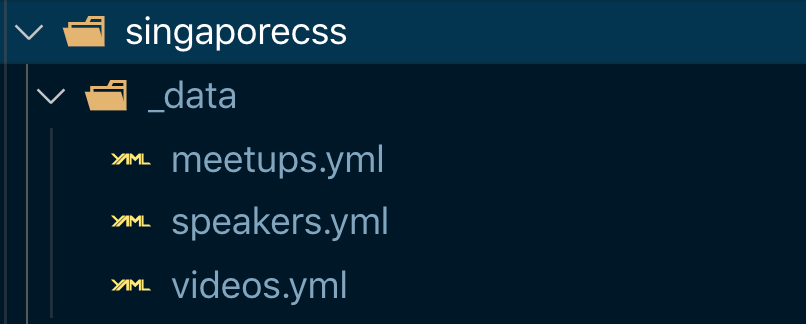

Place data files (supported formats only) in the _data folder

Jekyll will recognise them during site generation

Data will be accessible via site.data.NAME_OF_FILE

Some data file basics. Place the data files you'd like Jekyll to access in a _data folder at the root of your project, and Jekyll will parse them during the site generation process. The data in those files can be accessed with the syntax, site.data. whatever you named your data file.

Using data files (2/2)

speakers.yml

gloria:
  name: "Gloria Soh"
  twitter: "Gloriasohss"
  shortcode: "gloria"
  bio: "Gloria is a CSS queen who is bitcoin rich."

jacob:
  name: "Jacob Tan"
  twitter: "jacobtyq"
  shortcode: "jacob"
  bio: "Plays too much Factorio… and Developer by day"

sarah:
  name: "Sarah Lienert"
  twitter: "SazzarJ"
  shortcode: "sarah"
  bio: "Sarah likes to bake things for Talk.CSS and teach children."

speakers.html

<ul class="l-speakers c-speakers">
  {% for speaker in site.data.speakers %}
  <div class="l-speaker c-speaker">
    <figure>
      <img class="c-speaker__img" src="{{ site.url }}/assets/img/speakers/{{ speaker[1].shortcode }}.jpg" srcset="{{ site.url }}/assets/img/speakers/{{ speaker[1].shortcode }}@2x.jpg 2x" alt="{{ speaker[0].name }}"/>
      {% if speaker[1].twitter %}
      <figcaption><a class="c-speaker__link" href="https://twitter.com/{{ speaker[1].twitter }}">@{{ speaker[1].twitter }}</a></figcaption>
      {% elsif speaker[1].github %}
      <figcaption><a class="c-speaker__link" href="https://github.com/{{ speaker[1].github }}">@{{ speaker[1].github }}</a></figcaption>
      {% else %}
      <figcaption><span class="c-speaker__link">@{{ speaker[1].shortcode }}</span></figcaption>
      {% endif %}
    </figure>
    <p class="c-speaker__intro">{{ speaker[1].bio }}</p>
  </div>
  {% endfor %}
</ul>

Liquid templating engine

Open-source template language created by Shopify and written in Ruby

Features include:

Logical and comparison operators (==, !=, <, >, <=, >=, or, and)
Truthy and falsy
Control flow
Iteration
Variables
Filters

Truthy and falsy in Liquid

All values in Liquid are truthy except nil and false

Strings and arrays, even when empty, are truthy

Check for emptiness using blank or empty

Control flow

`if`	Executes a block of code only if a certain condition is `true`
`unless`	The opposite of `if` – executes a block of code only if a certain condition is not met
`elsif / else`	Adds more conditions within an `if` or `unless` block
`case / when`	Creates a switch statement to compare a variable with different values. `case` initialises the switch statement, and `when` compares its values

Relevant questions

That example I picked up from a Github issue on the Liquid repository, which got reopened a couple times over the past 7 years, I think. It is currently still open today. Clearly, not is something most people expect but unfortunately is not provided as a basic operator.

`unless`

Your best substitute for not

{% unless post.special %}
<header class="c-event__header">
  <h2 class="c-event__title">
    {{ post.title }}
  </h2>
  <p><strong>Event location:</strong> {{ post.location }}</p>
  <p><strong>Event date:</strong> {{ post.event-date | date: "%b %-d, %Y" }}</p>
</header>

<a href="https://www.meetup.com/SingaporeCSS/events/{{ post.event-id }}/" class="c-rsvp"><span>RSVP</span><span>at meetup.com</span></a>

<div class="c-event__content">
  {{ post.content | markdownify }}
</div>
{% endunless %}

Controls rendering when conditional returns nil or false
Prevent rendering of empty HTML elements
Useful when used in conjunction with front matter variables

Iteration

Iterator	Description	Parameters
`for`	Repeatedly executes a block of code	`limit`, `offset`, `range`, `reversed`
`cycle`	Loops through a group of strings and outputs them in the order that they were passed as parameters (must be used within `for` loop)	`cycle group`
`tablerow`	Generates an HTML table (has to be wrapped with `<table>` tags)	`limit`, `offset`, `range`, `cols`

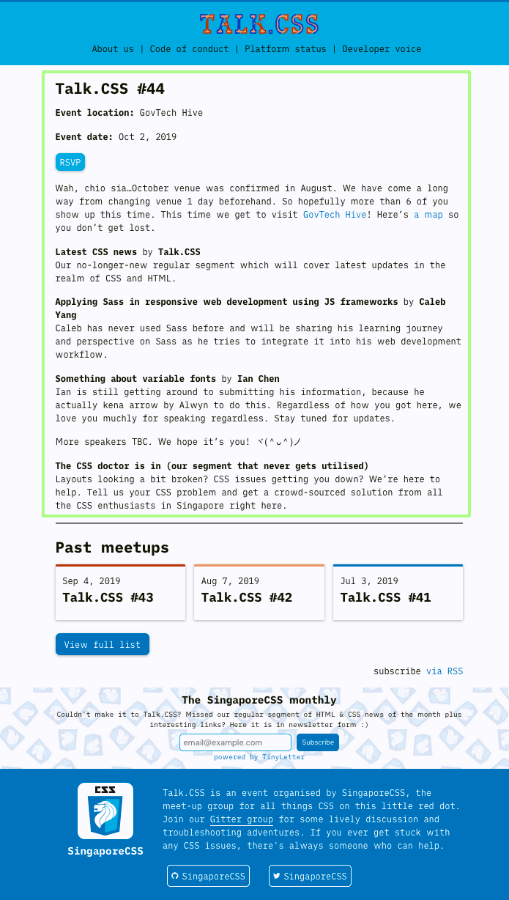

Display only latest post

{% for post in site.posts limit:1 %}
<article class="c-upcoming-event {{ post.css }}">
  {% unless post.special %}
  <header class="c-event__header">
    <h2 class="c-event__title">
      {{ post.title }}
    </h2>
    <p><strong>Event location:</strong> {{ post.location }}</p>
    <p><strong>Event date:</strong> {{ post.event-date | date: "%b %-d, %Y" }}</p>
  </header>

  <a href="https://www.meetup.com/SingaporeCSS/events/{{ post.event-id }}/" class="c-rsvp"><span>RSVP</span><span>at meetup.com</span></a>

  <div class="c-event__content">
    {{ post.content | markdownify }}
  </div>
  {% endunless %}
</article>
{% endfor %}

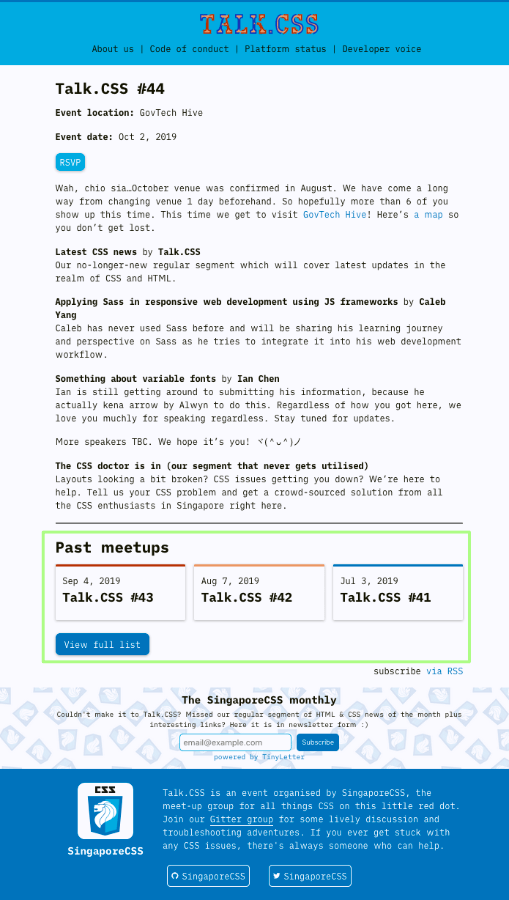

Display list of 3 posts before the latest one

<h2>Past meetups</h2>
<ul class="l-past-events c-past-events">
  {% for post in site.posts offset:1 limit:3 %}
    <li class="l-past-event c-past-event">
      <a class="c-past-event__link" href="{{ post.url | prepend: site.baseurl }}">
        <span class="c-past-event__meta">{{ post.event-date | date: "%b %-d, %Y" }}</span>
        <h3>{{ post.title }}</h3>
      </a>
    </li>
  {% endfor %}
</ul>
<a class="l-archive__link c-archive__link" href="{{ "/archives" | prepend: site.baseurl }}">View full list</a>

Variables

Possible to create new Liquid variables in addition to predefined ones

`assign`	Creates a new variable
`capture`	Captures the string inside of the opening and closing tags and assigns it to a variable
`increment`	Creates a new number variable, and increases its value by one every time it is called
`decrement`	Creates a new number variable, and decreases its value by one every time it is called

Custom front matter variables can be defined and accessed via the page.VARIABLE_NAME syntax

Establishing relationships across data files

speakers.yml

gloria:
  name: "Gloria Soh"
  twitter: "Gloriasohss"
  shortcode: "gloria"
  bio: "Gloria is a CSS queen who is bitcoin rich."

jacob:
  name: "Jacob Tan"
  twitter: "jacobtyq"
  shortcode: "jacob"
  bio: "Plays too much Factorio… and Developer by day"

sarah:
  name: "Sarah Lienert"
  twitter: "SazzarJ"
  shortcode: "sarah"
  bio: "Sarah likes to bake things for Talk.CSS and teach children."

videos.yml

s2502:
  title: "CSS grid for noobs"
  link: "https://youtu.be/0Laanmn3zWc"
  shortcode: "s2502"
  description: "Shirlaine and Gloria share their experience of learning and using CSS grid. Video from JuniorDev.SG."

s2601:
  title: "Frontend development for distributed teams"
  link: "https://youtu.be/xj-MbcBfu6Y"
  shortcode: "s2601"
  description: "Ardy shares how frontend development is done at Skyscanner, with a distributed team of more than 400 engineers."

s2602:
  title: "Faux sub-grid"
  link: "https://youtu.be/ChnITWfUfFU"
  shortcode: "s2602"
  description: "Using CSS grid but sad that subgrid isn't here yet? Zell has open-sourced his Sass-powered workaround."

meetups.yml

25:
  colour:
    name: lime
    hex: "#00FF00"
    rgba: rgba(0, 255, 0, 1)
  videos:
    - ref: s2501
    - ref: s2502
  speakers:
    - ref: ed
    - ref: gloria
    - ref: shirlaine

26:
  colour:
    name: indigo
    hex: "#4b0082"
    rgba: rgba(75, 0, 130, 1)
    text: "#fff"
  videos:
    - ref: s2601
    - ref: s2602
    - ref: s2603
  speakers:
    - ref: zell
    - ref: sheldon
    - ref: ardy

The SingaporeCSS website had always been a pet project of mine over the past 3 years and even though I doubt anybody visits the site, it's my baby and I love it regardless. When I first started, all the markup was manually written, which didn't make sense as the site grew because every post had a similar format. But I was lazy. Oh, so lazy.

When I finally wanted to create a page to list all speakers, I realised the existing implementation made the idea infeasible, and hence I stopped procrastinating and decided to resolve this technical debt.

Some planning was necessary in order to extract all the hard-coded values into data files that could be iterated upon. Each post represented 1 meetup, each meetup had multiple speakers with their corresponding videos. Videos would not be repeated across meetups, but speakers could be.

Then we also have variations, where sometimes there would be no video, and also some additional bits like CSS colour of the month, or news updates. So it took a combination of templating features to get things wired together.

Using `assign` to simplify custom data (1/2)

40:
  colour:
    name: lightseagreen
    hex: "#20b2aa"
    rgba: rgba(32, 178, 170, 1)
  videos:
    - ref: s4001
    - ref: s4002
    - ref: s4003
    - ref: s4004
  speakers:
    - ref: alex
    - ref: ujjwal
    - ref: linhan
    - ref: mike

{% assign meetup = site.data.meetups[page.meetup] %}
<div class="c-videos">
  /* other code */

  {% for videos in meetup.videos %}
  {% assign video = site.data.videos[videos.ref] %}
  <div class="c-video">
    <a class="c-video__link" href="{{ video.link }}">
      <img class="c-video__img" src="{{ site.url }}/assets/img/videos/talk-{{ page.meetup }}/{{ video.shortcode }}.jpg" srcset="{{ site.url }}/assets/img/videos/talk-{{ page.meetup }}/{{ video.shortcode }}@2x.jpg 2x" alt="Link to {{ video.title }} video"/>
    </a>
    <p class="c-video__desc">{{ video.description }}</p>
  </div>
  {% endfor %}

  /* moar code */
</div>

My data format of choice is YAML, so all the examples today are using YAML. The key data file was the meetup.yml file as it was the one that referenced both the speakers file and the videos file, and sort of ties them together.

To access specific values in the file, the syntax ended up being rather long, like site.data.meetups[KEY_VALUE]. Here's where I used the assign tag to put all that into a variable. This made the code much neater for when I wanted to loop through the video entries in the meetup data file, then use those values as keys in the videos data file.

I make use of the matching of values in one file as the key of another in order to stitch all the data together, so if you do dig into my source code, you will find things like shortcode or ref whose main purpose is, matching of key values pairs. Sort of like a foreign key in structured databases, I suppose.

Using `assign` to simplify custom data (2/2)

40:
  colour:
    name: lightseagreen
    hex: "#20b2aa"
    rgba: rgba(32, 178, 170, 1)
  videos:
    - ref: s4001
    - ref: s4002
    - ref: s4003
    - ref: s4004
  speakers:
    - ref: alex
    - ref: ujjwal
    - ref: linhan
    - ref: mike

{% if meetup.colour %}
{% assign colour = meetup.colour %}
<div class="c-colour">
  {% if colour.text %}
  <div class="c-swatch" style="background-color:{{ colour.hex }};color:{{ colour.text }}">
  {% else %}
  <div class="c-swatch" style="background-color:{{ colour.hex }}">
  {% endif %}
    <div class="c-swatch__txt">
      <p>{{ colour.name }}</p>
      <p>{{ colour.hex }}</p>
      <p>{{ colour.rgba }}</p>
    </div>
  </div>
<h4>CSS colour of the month</h4>
</div>
{% endif %}

To deal with the fact that some sections on the site were added on later, like the CSS colour of the month, some checking logic was required. So here's where Liquid's truthiness comes in handy. I can check for meetup.colour, and if this key does not exist in the entry on the meetup data file, the code block will not render as Jekyll returns nil in that case.

It all sounds rather straightforward now that I've streamlined the explanation to the pertinent bits, but it took me quite a while to figure out Liquid's truthiness which is why I spent a slide and a half talking about it earlier.

I personally prefer doing an additional assign for aesthetic reasons so the code is easier to read, but you don't really have to if you are okay with the longform style.

Count of speakers with `forloop.length`

Variables can be used outside the for loop they were declared in.

{% for speaker in site.data.speakers %}{% assign count = forloop.length %}{% endfor %}

So far, {{ count }} lovely people have spoken at Talk.CSS, we want you to be one of them too. If you're thinking, “but I have nothing to talk about”, we can help. Anything related to CSS will work. It could be something you debugged at work, or about a new property you read about, or something you built, or even a rant about why something doesn't work the way you want it.

☝️ speakers.md ☝️

Using `capture` for complex strings

Variables created through {% capture %} are strings.

Can create complex strings using other variables created with assign.

{% if page.css %}
{% capture special_styles %}/assets/css/{{ page.css }}.css{% endcapture %}
<link rel="stylesheet" href="{{ special_styles | prepend: site.baseurl }}">
{% endif %}

Finally, let's talk about capture. With assign, you can wrap a variable in quotations to save it as a string. capture takes all the content between the tags and assigns it to the variable.

So it may seem like there's simply a minor difference in syntax here. But the advantage of capture is you can use it to create complex strings that are made up of multiple string variables created through assign.

My particular use case was for conditional CSS in the head of my site, but I wanted the URL of the stylesheet to be processed through Jekyll filters, just to make sure I didn't have inconsistent paths.

One thing about filters is that all the Liquid filters are supported by Jekyll, in addition to those that are specific to Jekyll only. So the one I've used here, baseurl, is a Jekyll specific filter. The full list is available on the documentation site.

SingaporeCSS website workflow (1/2)

speakers.yml

ollie:
  name: "Ollie Monk"
  twitter: "ollie_monk"
  shortcode: "ollie"
  bio: "A modern Renaissance man with a wide range of interests. Looking for his headphones. Clearly did not write this bio himself."

jinjiang:
  name: "Zhao Jinjiang"
  twitter: "zhaojinjiang"
  shortcode: "jinjiang"
  bio: "0.1x engineer. Loves football. Does frontend."

post.markdown

---
layout: post
title: "Talk.CSS #43"
date: 2019-08-07 19:00:00 +0800
location: HOOQ
event-date: 2019-09-04 19:00:00 +0800
categories: meetup
meetup: 43
event-id: 261692436
novideos: true
---

videos.yml

s4301:
  title: "Lean animations"
  link: "https://youtu.be/_QN_ahQN0Ic"
  shortcode: "s4301"
  description: "Jinjiang shares some very practical tips on how to quickly add animations to your design or product."

s4302:
  title: "An exploration of CJSS - A CSS based web framework"
  link: "https://youtu.be/x1U9tPwRiiw"
  shortcode: "s4302"
  description: "CSS-in-JS? How about JS-in-CSS instead? Yishu ponders some deep questions about web development, plus LIVE-CODING!"

s4303:
  title: "Sometimes you gotta abuse Grid"
  link: "https://youtu.be/9DwzDzCNDwI"
  shortcode: "s4303"
  description: "Sheldon encountered a problem and solved it the best way he could, with Grid. Context is everything, my friends."

post.markdown

---
layout: post
title: "Talk.CSS #43"
date: 2019-08-07 19:00:00 +0800
location: HOOQ
event-date: 2019-09-04 19:00:00 +0800
categories: meetup
meetup: 43
event-id: 261692436
---

If you are also using YML…

There is a difference between lists and dictionaries.

41:
  colour:
    name: steelblue
    hex: "#4682b4"
    rgba: rgba(70, 130, 180, 1)
    text: "#fff"
  videos:
    - ref: s4101
    - ref: s4102
    - ref: s4103
    - ref: s4104
  speakers:
    - ref: van
    - ref: dylan
    - ref: weiyuan
    - ref: ollie

All members of a list are lines at the same indentation level starting with a "- "
A dictionary is represented by key/value pairs in the form key: value, where the colon must be followed by a space
Complicated data structures like lists of dictionaries, or dictionaries with lists as values are possible

Okay, I'm almost done here. I wasn't too familiar with YML when I started but after a lot of trial and error, I learned that the dash makes a difference in how the YAML file is parsed. Because I was using the square bracket notation to iterate over videos and speakers, those had to be a list. If I used a dictionary syntax, that is, without the dash, things didn't work out.

I want to plug the Jekyll documentation, which I personally find really well written and should be your go-to reference whenever you want to implement something slightly more complicated than rendering front matter on your template.

I hope some of the things I covered today are useful to some of you, and thank you all for taking the time to listen to me talk about data files! If you have any questions, you can find me on Twitter, and I'll try my best to answer them.

SingaporeCSS website

Source code: https://github.com/SingaporeCSS/singaporecss.github.io

On the web: https://singaporecss.github.io

Thank you!

https://www.chenhuijing.com

@hj_chen

@huijing

Font is Public Sans by USWDS

Why I love data files in Jekyll

What are data files?

Using data files (1/2)

Using data files (2/2)

Liquid templating engine

Truthy and falsy in Liquid

Control flow

Relevant questions

unless

Iteration

Display only latest post

Display list of 3 posts before the latest one

Variables

Establishing relationships across data files

Using assign to simplify custom data (1/2)

Using assign to simplify custom data (2/2)

Count of speakers with forloop.length

Using capture for complex strings

SingaporeCSS website workflow (1/2)

If you are also using YML…

SingaporeCSS website

Thank you!

`unless`

Using `assign` to simplify custom data (1/2)

Using `assign` to simplify custom data (2/2)

Count of speakers with `forloop.length`

Using `capture` for complex strings
